CMT-8105

Common Mode Chokes Overview

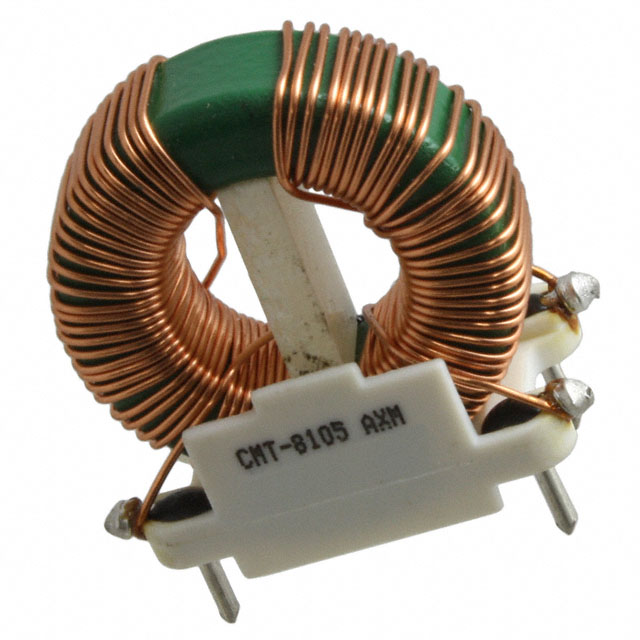

The Triad Magnetics CMT-8105 is a common mode filter choke designed for power line applications. It features an inductance of 7 mH minimum at 1 kHz and supports a maximum DC current of 2.8 A. The component has a maximum DC resistance of 120 mohms. It utilizes a radial through-hole mounting style with dimensions of 1.2 inches in length, 1.2 inches in width, and 0.6 inches in height. The device is unshielded and belongs to the CMT series.

Common Mode Chokes Feature Summary

• Provides common mode EMI suppression for noise elimination across all lines
• Designed for use in various types of power supplies
• Radial leaded construction for PCB mounting

Common Mode Chokes Applications

• Power supply noise filtering
• Common mode EMI suppression circuits
• Power line signal conditioning

Common Mode Chokes Procurement Notes

Verify the specific datasheet version from Triad Magnetics or authorized distributors to confirm mechanical tolerances and thermal ratings. Ensure the radial package dimensions align with the target PCB footprint. Cross-reference the 7 mH inductance and 2.8 A current rating against circuit requirements to validate performance under operating conditions.

Common Mode Chokes Selection Notes

Select this component when a 7 mH common mode inductance is required for power line filtering. The 2.8 A current rating suits moderate power applications. Consider the unshielded design for cost-sensitive projects where magnetic interference with nearby components is manageable. Verify that the radial through-hole format fits the assembly process constraints.

Common Mode Chokes Part Context

The CMT-8105 belongs to the Triad Magnetics CMT series of common mode chokes. This series focuses on dependable EMI suppression for power electronics. The component serves as a passive filter element to attenuate high-frequency noise coupled equally on multiple conductors within power distribution systems.

Common Mode Chokes Replacement Considerations

Consult the official Triad Magnetics CMT series documentation for direct cross-references. No public substitute part numbers are confirmed in the provided source material.
