CMT-8106-B

Common Mode Chokes Overview

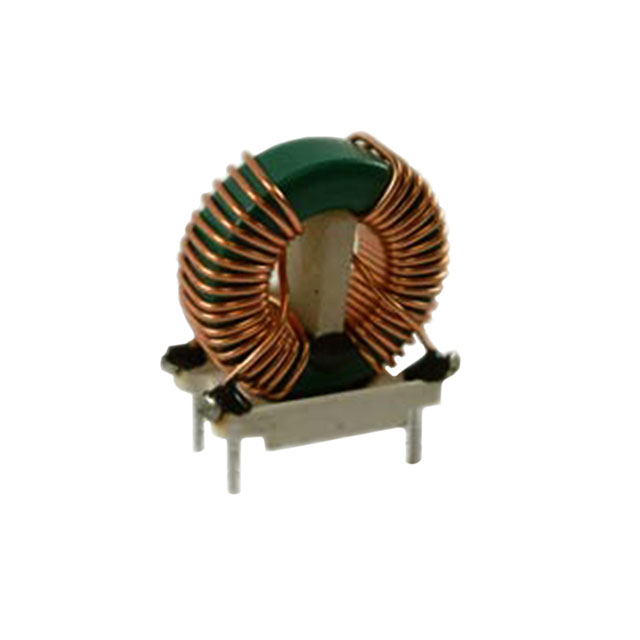

The CMT-8106-B is a power line common mode choke manufactured by Triad Magnetics. It features an inductance of 5 mH at 1 kHz and supports a maximum current rating of 3.7A. The component has a maximum DC resistance (DCR) of 70mOhm. It utilizes a vertical package with four pins for through-hole mounting. The unit is constructed with UL rated 130°C materials and holds CSA, IEC, UL, and VDE certifications.

Common Mode Chokes Feature Summary

• Provides effective noise suppression for two-line power circuits
• Constructed with high-temperature UL rated materials
• Includes multiple international safety certifications

Common Mode Chokes Applications

• Power supply input filtering
• EMI suppression in electronic equipment
• AC line noise reduction

Common Mode Chokes Procurement Notes

Verify the specific suffix against official Triad Magnetics documentation to confirm electrical tolerances and physical dimensions. Ensure the selected variant matches the required inductance and current ratings for the target circuit design before finalizing procurement.

Common Mode Chokes Selection Notes

Select this component based on its 5 mH inductance and 3.7A current handling capability. Confirm that the vertical through-hole form factor fits the PCB layout constraints. Verify that the 70mOhm DCR meets the voltage drop requirements of the application.

Common Mode Chokes Part Context

This part belongs to the CMT series of common mode chokes from Triad Magnetics. These components are designed for power line applications requiring robust noise filtering. The series typically offers various inductance and current options to suit different power levels.

Common Mode Chokes Replacement Considerations

Check for CMT-8106 variants or other Triad Magnetics parts with matching 5 mH inductance and 3.7A ratings. Ensure substitute components maintain the same pin configuration and certification requirements.
