CMT-8106

Common Mode Chokes Overview

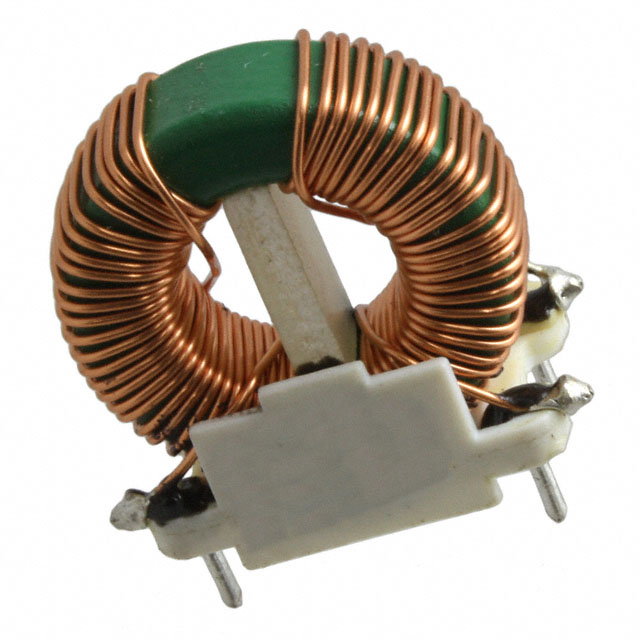

The Triad Magnetics CMT-8106 is a two-line common mode inductor designed for power line filtering applications. It features a minimum inductance of 5 mH at 1 kHz and supports a maximum DC current of 3.7 A. The component has a maximum DC resistance (DCR) of 70 mOhms and utilizes a vertical through-hole package with four PC pins. It operates within a temperature range of -55°C to +150°C and meets RoHS compliance standards.

Common Mode Chokes Feature Summary

• Provides superior EMI suppression for noise common to all lines in power supply circuits
• Designed for high reliability in demanding industrial environments
• Supports through-hole mounting for robust mechanical integration

Common Mode Chokes Applications

• Power supply input filtering
• Industrial equipment noise suppression
• AC line interference reduction

Common Mode Chokes Procurement Notes

Verify the specific ordering suffix, such as -B, if required by your design, as it may indicate variations in packaging or lead time compared to the base part number. Confirm that the manufacturer's standard delivery period aligns with your production schedule before placing orders. Ensure the component meets all relevant safety certifications like UL, CSA, IEC, and VDE for your target market.

Common Mode Chokes Selection Notes

Select this component when a minimum inductance of 5 mH at 1 kHz is required for common mode noise attenuation. The 3.7 A current rating suits applications with moderate power demands. Consider the vertical package dimensions and pin configuration for PCB layout compatibility. Verify thermal performance requirements against the specified operating temperature range.

Common Mode Chokes Part Context

This component belongs to the CMT series from Triad Magnetics, which focuses on common mode chokes for EMI suppression. The series offers various inductance and current ratings to suit different power line filtering needs. These inductors are engineered to eliminate noise common to all lines, ensuring cleaner power delivery in sensitive electronic systems.

Common Mode Chokes Replacement Considerations

Check for direct substitutes within the same series, such as the CMT-8105-B, noting differences in inductance and current ratings. Ensure any replacement matches the physical footprint and electrical specifications to maintain circuit integrity without redesign.
