CMT-8107

Common Mode Chokes Overview

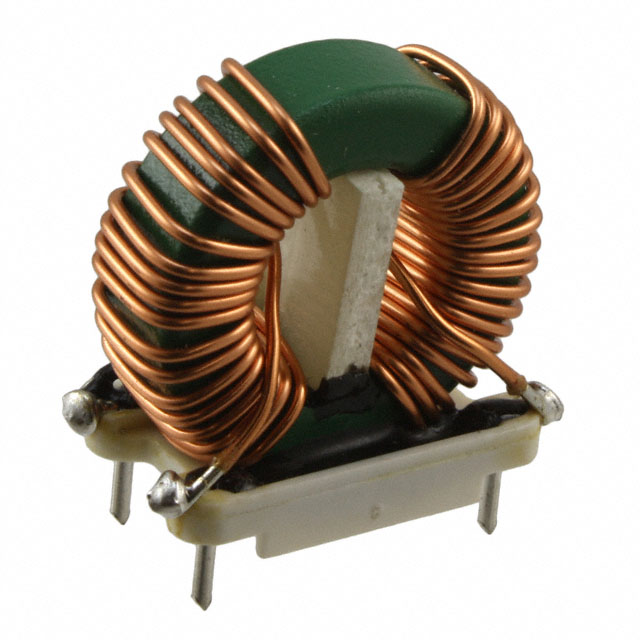

The Triad Magnetics CMT-8107 is a through-hole common mode choke designed for EMI suppression in power supply circuits. It features an inductance of 2.0 mH and supports a maximum DC current of 6.6 A. The component has a maximum DC resistance of 22 mOhms and operates within a temperature range of -55°C to +150°C. It utilizes radial leads for PCB mounting and is unshielded.

Common Mode Chokes Feature Summary

• Provides dependable common mode EMI suppression for noise elimination across all lines
• Designed for use in various types of power supplies
• Features high thermal stability with operation up to +150°C

Common Mode Chokes Applications

• Power supply EMI filtering
• Noise suppression in electronic circuits
• Common mode interference reduction

Common Mode Chokes Procurement Notes

Verify the specific part number suffix, as variants like CMT-8107-B may exist with different electrical characteristics or packaging. Confirm that the 2.0 mH inductance and 6.6 A current rating match your design requirements. Ensure the radial lead pitch and physical dimensions are compatible with your PCB layout before ordering.

Common Mode Chokes Selection Notes

Select this component when high current handling (6.6 A) and wide temperature operation (-55°C to +150°C) are required. The low DC resistance minimizes power loss. Compare against the CMT-8108 if higher current capacity is needed, or verify if the standard CMT-8107 meets the specific inductance tolerance and voltage isolation needs of the application.

Common Mode Chokes Part Context

The CMT-8107 belongs to the Triad Magnetics CMT series of common mode filters. These inductors are engineered for robust performance in demanding environments. The series offers various inductance and current ratings to suit different power supply designs, providing reliable noise suppression for sensitive electronic equipment.

Common Mode Chokes Replacement Considerations

The CMT-8107-B is a documented variant within the same product line. Verify its specifications against the standard CMT-8107 datasheet to ensure compatibility regarding inductance, current rating, and physical dimensions before substitution.
