CMT-8108-B

$5.40

Description：CMC 1MH 10A 2LN TH ESD
Series：CMT
Mfr：Triad Magnetics
Package：Bulk

SKU:d19dd1d33625 Category: Common Mode Chokes Brand: Triad Magnetics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CMT-8108-B is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Triad Magnetics. Its product description is CMC 1MH 10A 2LN TH ESD. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for CMT-8108-B

Description：CMC 1MH 10A 2LN TH ESD
Series：CMT
Mfr：Triad Magnetics
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：10A
DC Resistance (DCR) (Max)：10mOhm
Voltage Rating - DC：-
Voltage Rating - AC：1500V (1.5kV)
Operating Temperature：-55°C ~ 105°C
Ratings：-
Approval Agency：CSA, IEC, UL, VDE
Features：-
Mounting Type：Through Hole
Size / Dimension：1.200" L x 0.600" W (30.48mm x 15.24mm)
Height (Max)：1.200" (30.48mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：1 mH @ 1 kHz
Impedance @ Frequency：-
Qualification：-
Grade：-

Common Mode Chokes datasheet and documents for CMT-8108-B

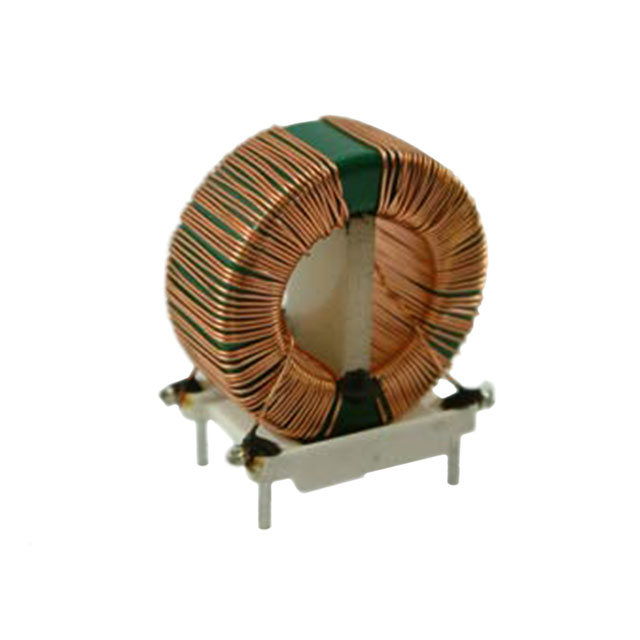

CMT-8108-B

Common Mode Chokes Overview

The Triad Magnetics CMT-8108-B is a through-hole common mode choke designed for power line filtering. It features an inductance of 1 mH at 1 kHz and supports a maximum DC current of 10 A. The component has a maximum DC resistance of 10 mOhms and utilizes a radial, unshielded construction. Physical dimensions are 1.2 inches in length and width, with a height of 0.6 inches.

Common Mode Chokes Feature Summary

Provides common mode noise suppression for dual-line power applications
Supports high current handling up to 10 A with low series resistance
Designed for vertical PCB mounting via radial leads

Common Mode Chokes Applications

Power supply input filtering
Industrial equipment EMI suppression
AC/DC converter noise reduction

Common Mode Chokes Procurement Notes

Verify the specific suffix against the manufacturer datasheet to confirm electrical tolerances and lead configuration. Ensure the selected variant matches the required inductance and current ratings for the target circuit design before procurement.

Common Mode Chokes Selection Notes

Select this component for applications requiring robust common mode rejection in high-current environments. Verify that the physical footprint accommodates the specified radial lead spacing and that the operating temperature range meets system requirements.

Common Mode Chokes Part Context

This part belongs to the Triad Magnetics CMT series of common mode chokes. These components are engineered for general-purpose electromagnetic interference suppression in AC power lines, offering a balance of high current capacity and compact vertical mounting profiles.

Common Mode Chokes Replacement Considerations

Cross-reference with other Triad Magnetics CMT series parts or equivalent industry-standard common mode chokes. Verify matching inductance, current rating, and physical dimensions before substitution.
