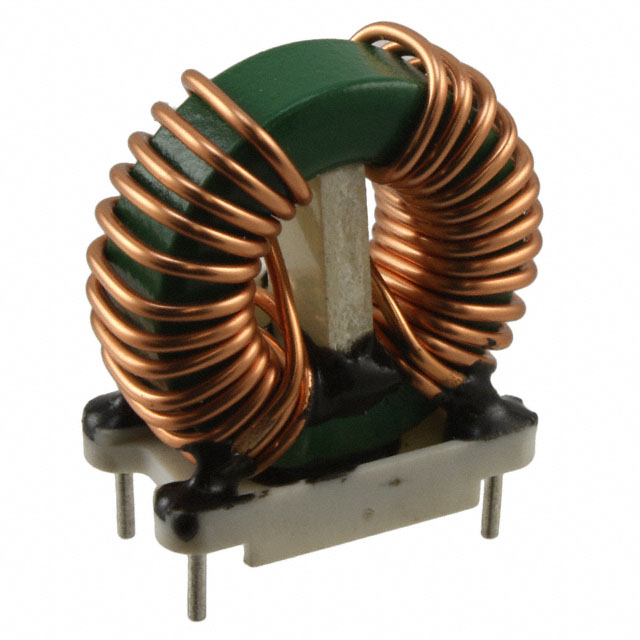

CMT-8108 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Triad Magnetics. Its product description is CMC 1MH 10A 2LN TH ESD. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for CMT-8108
- Description：CMC 1MH 10A 2LN TH ESD
- Series：CMT
- Mfr：Triad Magnetics
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：10A
- DC Resistance (DCR) (Max)：10mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：1500V (1.5kV)
- Operating Temperature：-55°C ~ 105°C
- Ratings：-
- Approval Agency：CSA, IEC, UL, VDE
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.200" L x 0.600" W (30.48mm x 15.24mm)
- Height (Max)：1.200" (30.48mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：1 mH @ 1 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Common Mode Chokes datasheet and documents for CMT-8108
Common Mode Chokes Overview
The Triad Magnetics CMT-8108 is a through-hole common mode choke designed for power line filtering applications. It features a dual-channel configuration with an inductance of 1 mH measured at 1 kHz. The component supports a maximum DC current rating of 10 A and exhibits a maximum DC resistance of 10 mOhms. Physically, it measures 1.2 inches in length and width, with a height of 0.6 inches. The unit utilizes radial termination for PCB mounting and is classified as unshielded.
Common Mode Chokes Feature Summary
- Provides common mode noise suppression for dual-line power circuits
- Supports high current handling up to 10 amperes
- Utilizes radial leads for standard printed circuit board integration
Common Mode Chokes Applications
- Power supply input filtering
- Electromagnetic interference suppression in electronic equipment
- AC/DC converter noise reduction
Common Mode Chokes Procurement Notes
Verify the specific manufacturer part number against official Triad Magnetics documentation to ensure authenticity. Confirm that the required inductance value of 1 mH at 1 kHz and the 10 A current rating align with your circuit design specifications before procurement. Ensure compatibility with your PCB footprint requirements for radial mounting components.
Common Mode Chokes Selection Notes
Select this component when designing circuits requiring robust common mode noise attenuation for high-current power lines. The 10 A rating makes it suitable for main power inputs rather than low-power signal lines. Consider the unshielded nature of the device regarding potential magnetic coupling with nearby sensitive components during layout.
Common Mode Chokes Part Context
This component belongs to the CMT series of common mode filters manufactured by Triad Magnetics. The series offers various inductance and current ratings tailored for different power electronics needs. The CMT-8108 specifically targets applications demanding significant current capacity alongside effective noise filtration for power integrity.
Common Mode Chokes Replacement Considerations
Consult Triad Magnetics official cross-reference lists or distributor substitution tools for verified equivalent parts. Ensure any substitute maintains identical electrical parameters, specifically the 1 mH inductance and 10 A current rating, while matching the physical radial package dimensions.
