CMT-8111 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Triad Magnetics. Its product description is CMC 12MH 4A 2LN TH ESD. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for CMT-8111
- Description：CMC 12MH 4A 2LN TH ESD
- Series：CMT
- Mfr：Triad Magnetics
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：4A
- DC Resistance (DCR) (Max)：110mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：1500V (1.5kV)
- Operating Temperature：-55°C ~ 105°C
- Ratings：-
- Approval Agency：CSA, IEC, UL, VDE
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.350" L x 0.800" W (34.29mm x 20.32mm)
- Height (Max)：1.450" (36.83mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：12 mH @ 1 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Common Mode Chokes datasheet and documents for CMT-8111
Common Mode Chokes Overview

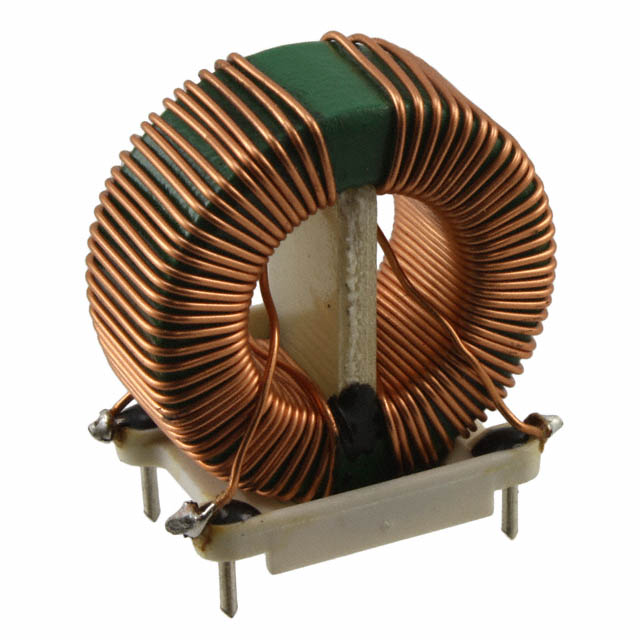

The Triad Magnetics CMT-8111 is a through-hole common mode choke designed for power line EMI suppression. It features an inductance of 12 mH at 1 kHz and supports a maximum DC current of 4 A. The component has a maximum DC resistance of 110 mOhms and utilizes a radial, unshielded construction. Physical dimensions are 1.45 inches in length, 1.35 inches in width, and 0.8 inches in height.
Common Mode Chokes Feature Summary
- Provides effective electromagnetic interference (EMI) noise elimination for power supply applications
- Utilizes a robust radial PCB mount configuration for secure installation
- Features an unshielded design suitable for standard power line filtering requirements
Common Mode Chokes Applications
- Power supply input filtering
- Electromagnetic interference suppression circuits
- General purpose power line noise reduction
Common Mode Chokes Procurement Notes
Verify the specific manufacturer part number against official Triad Magnetics documentation to ensure authenticity. Confirm that the required electrical parameters, including the 12 mH inductance and 4 A current rating, align with the target circuit design specifications before procurement.
Common Mode Chokes Selection Notes
Select this component when a high-current common mode choke with 12 mH inductance is required for through-hole assembly. Ensure the application environment accommodates the unshielded nature of the device and that the physical footprint fits the available PCB space constraints.
Common Mode Chokes Part Context
This component belongs to the CMT series of common mode filters manufactured by Triad Magnetics. These inductors are engineered for dependable performance in various power supply systems, focusing on eliminating conducted noise from power lines while maintaining low insertion loss.
Common Mode Chokes Replacement Considerations
Consult official Triad Magnetics substitution guides or distributor cross-reference tools for verified equivalent parts. Do not assume compatibility based solely on similar inductance values; verify current ratings and physical dimensions.
