CMT-8113

Common Mode Chokes Overview

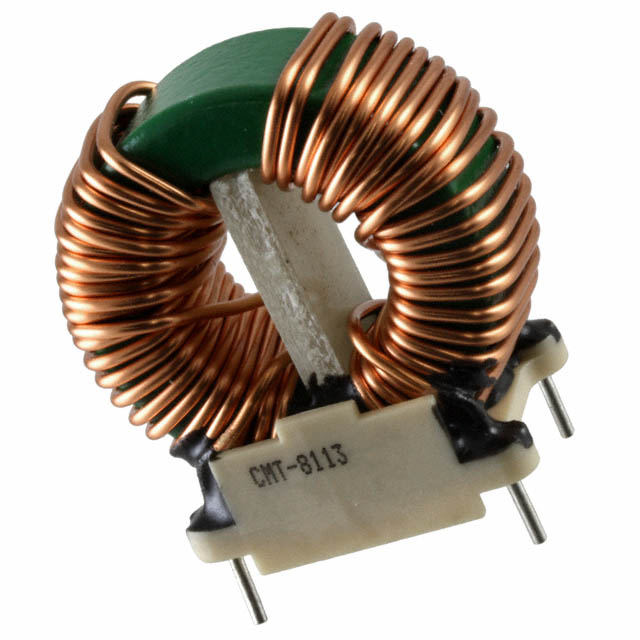

The Triad Magnetics CMT-8113 is a through-hole common mode choke designed for power line EMI suppression. It features an inductance of 5 mH at 1 kHz and supports a maximum DC current of 8.9 A. The component has a maximum DC resistance of 22 mOhms and operates within a temperature range of -55°C to +150°C. It provides a voltage rating of 1500 V AC and meets VDE, IEC, UL, and CSA safety requirements.

Common Mode Chokes Feature Summary

• Provides effective electromagnetic interference suppression for power lines
• Complies with international safety standards including VDE, IEC, UL, and CSA
• Supports high operating temperatures up to 150°C

Common Mode Chokes Applications

• Power supply input filtering
• EMI suppression in electronic equipment
• AC line noise reduction

Common Mode Chokes Procurement Notes

Verify the specific datasheet version to confirm exact electrical tolerances and physical dimensions before integration. Ensure the PCB footprint matches the radial lead configuration. Confirm that the 8.9 A current rating aligns with the application's peak load requirements to prevent saturation or overheating during operation.

Common Mode Chokes Selection Notes

Select this component when high inductance is required for low-frequency noise attenuation alongside significant current handling capabilities. The wide operating temperature range makes it suitable for industrial environments. Compare against other CMT series variants if different inductance values or current ratings are needed for specific circuit constraints.

Common Mode Chokes Part Context

This part belongs to the Triad Magnetics CMT series of common mode chokes. These components are engineered for robust performance in demanding power applications. The series offers various inductance and current combinations to suit diverse filtering needs while maintaining compliance with global safety certifications.

Common Mode Chokes Replacement Considerations

Check for direct substitutes within the CMT series with matching 5 mH inductance and similar current ratings. Verify pin compatibility and mounting style when considering alternative manufacturers' common mode chokes.
