CMT-8114

Common Mode Chokes Overview

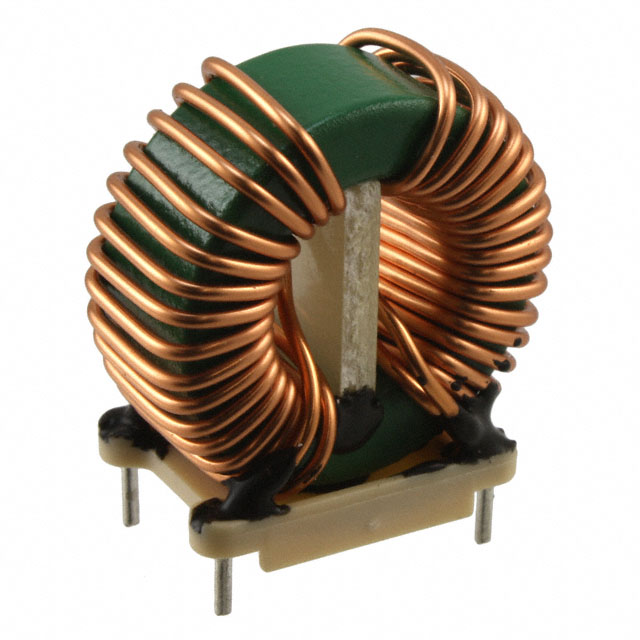

The Triad Magnetics CMT-8114 is a common mode choke designed for power line applications. It features an inductance of 2.5 mH at 1 kHz and supports a maximum DC current of 12.5 A. The component has a maximum DC resistance of 11 mOhms. Physical dimensions are 1.5 inches in length, 1.45 inches in width, and 36.83 mm in height. It utilizes a through-hole mounting style with two lines.

Common Mode Chokes Feature Summary

• Provides EMI suppression for noise common to all lines in power supplies
• Designed for high current handling up to 12.5 A
• Constructed for through-hole PCB mounting

Common Mode Chokes Applications

• Power supply noise elimination
• Common mode EMI suppression
• Power line filtering

Common Mode Chokes Procurement Notes

Verify the specific part number suffix when ordering. Standard designations may differ from variants like CMT-8114-B which include additional features such as ESD protection. Confirm physical footprint compatibility with your PCB layout before procurement. Ensure the selected variant meets the required voltage and current ratings for your specific circuit design.

Common Mode Chokes Selection Notes

Select this component for applications requiring robust common mode noise reduction in high-current environments. The 2.5 mH inductance value is suitable for standard power line filtering frequencies. Consider the physical size constraints as the unit measures 1.5 by 1.45 inches. Verify that the through-hole package aligns with your assembly capabilities.

Common Mode Chokes Part Context

This component belongs to the CMT8100 series of common mode inductors manufactured by Triad Magnetics. The series is characterized by dependable performance for eliminating noise in various power supply types. These inductors are engineered to handle significant current loads while maintaining low DC resistance for efficient operation.

Common Mode Chokes Replacement Considerations

The CMT-8114-B is a confirmed substitute within the same series. It shares similar electrical characteristics but includes ESD protection features. Verify that the additional protection does not conflict with system requirements.
