CMT-8115

Common Mode Chokes Overview

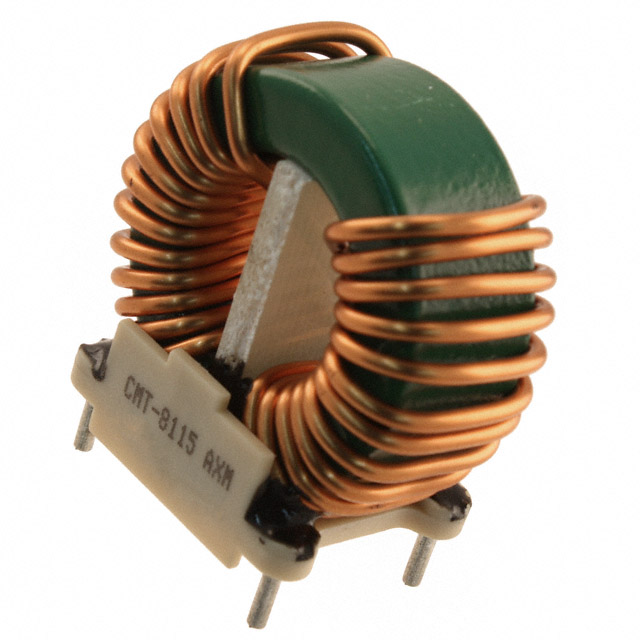

The Triad Magnetics CMT-8115 is an unshielded common mode choke designed for power line applications. It features a radial PCB mount configuration with a single channel. The component provides a minimum inductance of 1.2 mH at 1 kHz and supports a maximum DC current of 16 A. Key electrical specifications include a maximum DC resistance of 6000 microohms (6 mOhms) and an AC voltage rating of 1500 V. It operates within a temperature range of -55°C to 105°C.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for power lines
• Radial through-hole mounting for PCB integration
• High current handling capability up to 16 A
• Unshielded construction for standard EMI filtering

Common Mode Chokes Applications

• Power supply input filtering
• AC/DC converter noise reduction
• Industrial equipment power line protection
• Consumer electronics EMI suppression

Common Mode Chokes Procurement Notes

Verify the specific datasheet version, as some sources list 16 A while others indicate lower ratings. Confirm the exact inductance tolerance and DC resistance values required for your circuit design. Ensure the 1500 V AC rating meets safety isolation requirements. Check RoHS compliance status directly from the manufacturer's official documentation before ordering.

Common Mode Chokes Selection Notes

Select this component when high current capacity is required alongside moderate inductance. The 1.2 mH value suits general power line filtering where saturation current is critical. Compare against series variants like CMT-8108 or CMT-8111 if different inductance-to-current ratios are needed. Verify physical dimensions fit the PCB layout constraints.

Common Mode Chokes Part Context

Part of the Triad Magnetics CMT series of common mode chokes. This series offers various inductance and current combinations for power line filtering. The CMT-8115 specifically targets higher current applications compared to lower-rated siblings in the same package style.

Common Mode Chokes Replacement Considerations

Check Triad Magnetics CMT-8108 for higher current but lower inductance. Consider CMT-8111 for higher inductance with lower current capacity. Verify pin compatibility and thermal performance before substituting.
