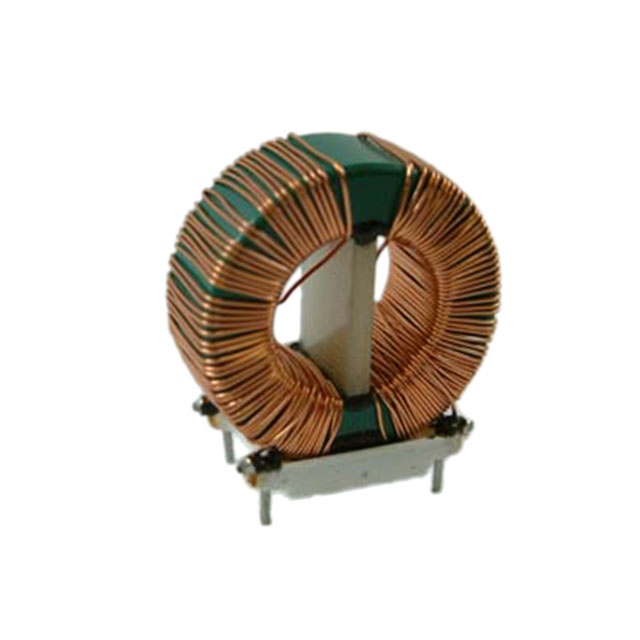

CMT-8117-B is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Triad Magnetics. Its product description is CMC 36MH 2.9A 2LN THROUGH HOLE. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for CMT-8117-B
- Description：CMC 36MH 2.9A 2LN THROUGH HOLE
- Series：CMT
- Mfr：Triad Magnetics
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：2.9A
- DC Resistance (DCR) (Max)：300mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：1500V (1.5kV)
- Operating Temperature：-55°C ~ 105°C
- Ratings：-
- Approval Agency：CSA, IEC, UL, VDE
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.550" L x 0.800" W (39.37mm x 20.32mm)
- Height (Max)：1.650" (41.91mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：36 mH @ 1 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Common Mode Chokes datasheet and documents for CMT-8117-B
Common Mode Chokes Overview
The Triad Magnetics CMT-8117-B is a common mode inductor designed for EMI suppression in power supply applications. It features a minimum inductance of 36 mH at 1 kHz and supports a maximum DC current of 2.9 A. The component has a maximum DC resistance of 300 mOhms and utilizes radial through-hole mounting. Constructed with UL-rated Class B materials, it meets VDE, IEC, UL, and CSA safety requirements.
Common Mode Chokes Feature Summary
- Provides effective electromagnetic interference (EMI) suppression for power supply circuits
- Constructed using UL-rated Class B insulation materials for thermal reliability
- Complies with international safety standards including VDE, IEC, UL, and CSA
Common Mode Chokes Applications
- Power supply noise filtering
- Electromagnetic interference suppression systems
- Industrial equipment power conditioning
Common Mode Chokes Procurement Notes
Verify the suffix -B indicates bulk packaging configuration rather than functional changes. Confirm lead times and availability directly with authorized distributors as stock levels fluctuate. Ensure compliance with RoHS directives if required by specific project specifications before finalizing procurement orders.
Common Mode Chokes Selection Notes
Select this component when a 36 mH inductance value is required for common mode noise reduction. The 2.9 A current rating suits moderate power applications. Verify that the unshielded design does not interfere with adjacent components due to magnetic field exposure during operation.
Common Mode Chokes Part Context
This part belongs to the CMT series of common mode chokes manufactured by Triad Magnetics. These components are specifically engineered for through-hole PCB mounting. The series offers various inductance and current ratings to accommodate different power supply filtering requirements across industrial and commercial electronics.
Common Mode Chokes Replacement Considerations
The CMT-8117 serves as the base model for the CMT-8117-B variant. Substitution requires matching the 36 mH inductance, 2.9 A current rating, and 300 mOhm resistance specifications. Ensure the replacement maintains the same radial lead configuration and physical footprint compatibility.
