CMT-8117

Common Mode Chokes Overview

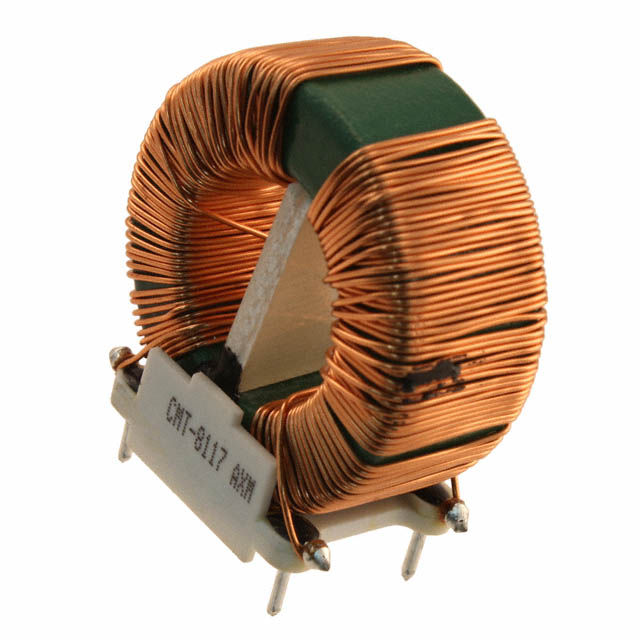

The Triad Magnetics CMT-8117 is a common mode inductor designed for EMI suppression in power supply applications. It features a single-channel configuration with radial through-hole termination for PCB mounting. The component provides a minimum inductance of 36 mH at 1 kHz and supports a maximum DC current of 2.9 A. Its maximum DC resistance is specified at 300 mOhms. The unit measures 1.65 inches in length, 1.55 inches in width, and 0.8 inches in height. It is classified as an unshielded common mode choke.

Common Mode Chokes Feature Summary

• Provides common mode EMI suppression to eliminate noise present on all lines within power supply circuits
• Constructed as a highly dependable inductor suitable for various industrial power supply environments
• Complies with major international safety standards including VDE, IEC, UL, and CSA requirements

Common Mode Chokes Applications

• EMI suppression in general power supplies
• Noise elimination in industrial control equipment
• Common mode noise filtering in electronic circuits

Common Mode Chokes Procurement Notes

Verify the specific datasheet version and compliance certifications such as VDE, IEC, UL, and CSA before integration. Confirm that the 300 mOhm DCR and 2.9 A current rating align with your circuit's thermal and electrical constraints. Ensure the radial lead spacing matches your PCB footprint design to avoid assembly issues.

Common Mode Chokes Selection Notes

Select this component when a 36 mH inductance value is required for common mode noise reduction. It is appropriate for designs needing a 2.9 A current capacity with low series resistance. Consider its unshielded nature and physical dimensions during layout planning to ensure adequate clearance and mechanical stability on the printed circuit board.

Common Mode Chokes Part Context

The CMT-8117 belongs to the CMT series of common mode chokes manufactured by Triad Magnetics. This series focuses on providing reliable EMI suppression solutions for power electronics. The component utilizes radial leads for secure PCB mounting, distinguishing it from surface mount alternatives in the same product family.

Common Mode Chokes Replacement Considerations

Consult official Triad Magnetics documentation for verified substitute part numbers. Cross-referencing requires matching inductance, current rating, and physical dimensions to ensure functional compatibility without redesigning the host circuit.
