CMT908-V2

Common Mode Chokes Overview

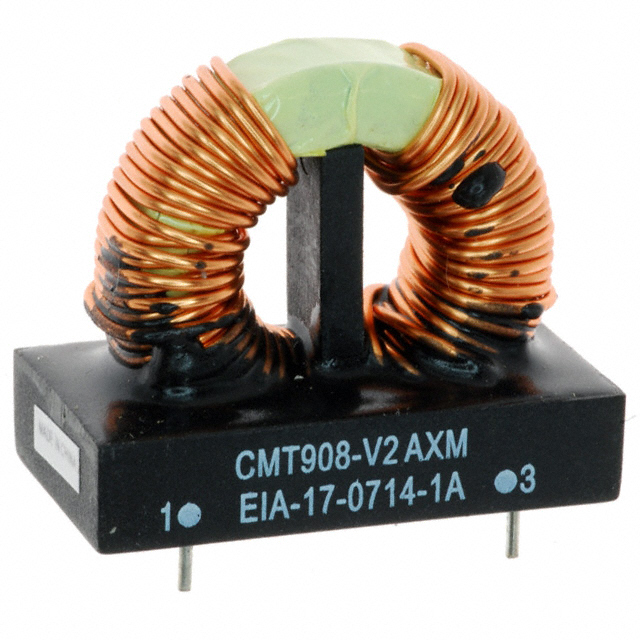

The Triad Magnetics CMT908-V2 is a common mode choke inductor from the CMT series, designed for power line applications. It features a toroidal encapsulated core with radial through-hole termination. Key electrical parameters include an inductance of 4 mH at 10 kHz and a maximum DC resistance of 40 mOhms. The component supports a maximum RMS current of 5.2 A and has an AC voltage rating of 1500 V. It operates within a temperature range of -40°C to +80°C.

Common Mode Chokes Feature Summary

• Encapsulated toroidal construction for environmental protection
• Radial through-hole mounting configuration
• Dual-line (2LN) circuit topology

Common Mode Chokes Applications

• Power line EMI filtering
• Common mode noise suppression in electronic equipment

Common Mode Chokes Procurement Notes

Verify the specific part number suffix against official Triad Magnetics documentation to confirm exact electrical ratings and physical dimensions. Ensure compatibility with existing PCB layouts regarding through-hole spacing and lead form. Confirm RoHS compliance status via the manufacturer's latest datasheet before finalizing procurement specifications.

Common Mode Chokes Selection Notes

Select this component when a 4 mH inductance value is required for common mode noise reduction in dual-line power circuits. The 5.2 A current rating suits moderate power applications. Verify that the 1500 V AC rating meets system insulation requirements. Consider the operating temperature range limits for the intended environment.

Common Mode Chokes Part Context

This component belongs to the Triad Magnetics CMT908 series of common mode inductors. The series offers various inductance values and current ratings packaged as kits or individual units. These inductors are characterized by their encapsulated toroidal design, which provides consistent performance and mechanical stability for industrial and commercial power supply applications.

Common Mode Chokes Replacement Considerations

Consult Triad Magnetics documentation for direct cross-references. Alternative components must match the 4 mH inductance, 5.2 A current rating, and 1500 V AC voltage rating while maintaining compatible through-hole package dimensions.
