CMT908-V3

Common Mode Chokes Overview

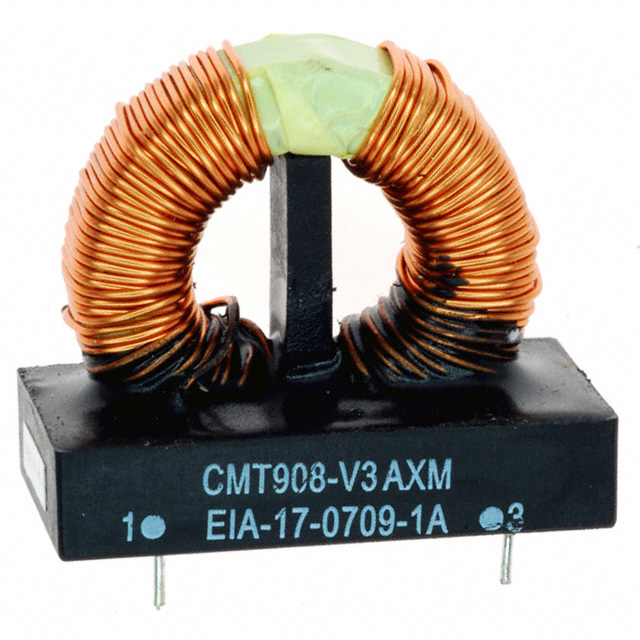

The CMT908-V3 is a common mode choke from the Triad Magnetics CMT series, designed for power line EMI suppression. It features through-hole mounting and encapsulated toroidal construction. Key electrical parameters include an inductance of 8 mH measured at 10 kHz, an RMS current rating of 3.2 A, and a maximum DC resistance of 120 mOhm.

Common Mode Chokes Feature Summary

• High frequency common mode inductor design for effective EMI suppression
• Encapsulated toroidal core construction for mechanical stability
• Through-hole installation type suitable for various developmental needs

Common Mode Chokes Applications

• Power line filtering
• EMI suppression in electronic circuits
• Developmental prototyping requiring representative samples

Common Mode Chokes Procurement Notes

Verify the specific suffix (V3) against official Triad Magnetics documentation to confirm exact electrical ratings such as inductance and current handling. Ensure the through-hole package dimensions match your PCB layout requirements before ordering.

Common Mode Chokes Selection Notes

Select this component when high-frequency common mode noise reduction is required on power lines. The 3.2 A RMS rating and low DC resistance make it suitable for applications demanding efficient signal integrity without significant voltage drop across the filter.

Common Mode Chokes Part Context

This part belongs to the CMT908 Series of common mode inductors by Triad Magnetics. The series offers various inductance values and current ratings, with the V3 variant specifically providing 8 mH inductance. These components are widely used for their dependability in suppressing electromagnetic interference in power supplies.

Common Mode Chokes Replacement Considerations

Consult Triad Magnetics catalogs for alternative CMT908 variants with different inductance or current ratings if specifications do not match. Verify pin compatibility and thermal characteristics when substituting with other manufacturers' common mode chokes.
