CMT908-V4

$6.29

Description：CMC 16MH 2.6A 2LN THROUGH HOLE
Series：CMT
Mfr：Triad Magnetics
Package：Bulk

SKU:acacf5786ade Category: Common Mode Chokes Brand: Triad Magnetics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CMT908-V4 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Triad Magnetics. Its product description is CMC 16MH 2.6A 2LN THROUGH HOLE. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for CMT908-V4

Description：CMC 16MH 2.6A 2LN THROUGH HOLE
Series：CMT
Mfr：Triad Magnetics
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：2.6A
DC Resistance (DCR) (Max)：160mOhm
Voltage Rating - DC：-
Voltage Rating - AC：1500V (1.5kV)
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：CSA, IEC, UL, VDE
Features：-
Mounting Type：Through Hole
Size / Dimension：1.450" L x 0.800" W (36.83mm x 20.32mm)
Height (Max)：1.500" (38.10mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：16 mH @ 10 kHz
Impedance @ Frequency：-
Qualification：-
Grade：-

Common Mode Chokes datasheet and documents for CMT908-V4

CMT908-V4

Common Mode Chokes Overview

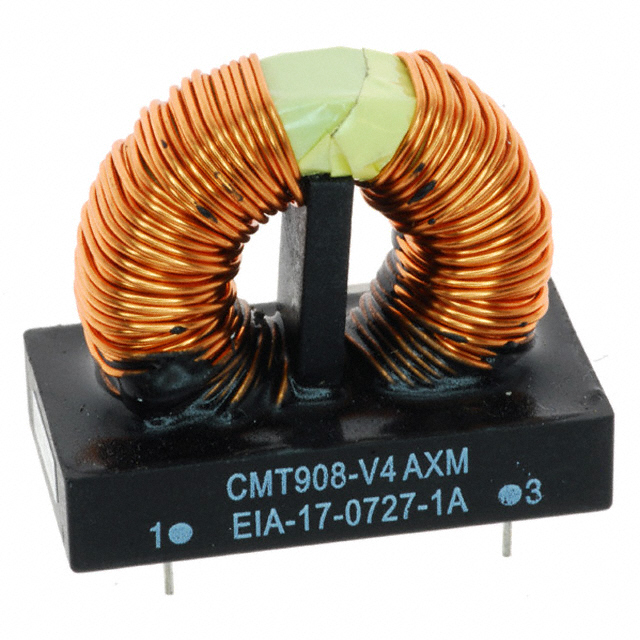

The Triad Magnetics CMT908-V4 is a common mode choke from the CMT series, designed for power line applications. It features a toroidal core with radial through-hole termination. Key electrical parameters include an inductance of 16 mH at 2.6 Arms RMS current and a DC resistance of 160 milliohms. The component is part of the CMT908K evaluation kit.

Common Mode Chokes Feature Summary

Provides EMI suppression for noise common to all lines
Constructed with UL-rated materials for 130 °C classification
Utilizes a toroidal core design

Common Mode Chokes Applications

Power supply noise elimination
Developmental needs requiring representative samples
Power line filtering

Common Mode Chokes Procurement Notes

Verify the specific suffix against official documentation to confirm exact inductance and current ratings. Confirm RoHS compliance status via the manufacturer's datasheet before integration. Ensure the through-hole package matches the target PCB footprint requirements.

Common Mode Chokes Selection Notes

Select this component when a 16 mH inductance value is required for common mode noise reduction. Verify that the 2.6 Amps RMS current rating meets the circuit's operational demands. Check that the toroidal form factor fits within the available enclosure space.

Common Mode Chokes Part Context

This component belongs to the CMT908 series of high-frequency common mode inductors manufactured by Triad Magnetics. It is included in the CMT908K kit, which provides various inductance values for development purposes.

Common Mode Chokes Replacement Considerations

Consult the official Triad Magnetics catalog for direct substitutes. Verify that any alternative maintains the 16 mH inductance and 2.6A current rating.
