CMX1211X132B-10

$3.45

Description：CMC 1.3MH 11A 2LN SMD
Series：CMX
Mfr：Laird-Signal Integrity Products
Package：Bulk

SKU:cc5a639d014d Category: Common Mode Chokes Brand: Laird-Signal Integrity Products

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CMX1211X132B-10 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Laird-Signal Integrity Products. Its product description is CMC 1.3MH 11A 2LN SMD. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for CMX1211X132B-10

Description：CMC 1.3MH 11A 2LN SMD
Series：CMX
Mfr：Laird-Signal Integrity Products
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：11A
DC Resistance (DCR) (Max)：10mOhm
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：1.240" L x 0.984" W (31.50mm x 25.00mm)
Height (Max)：0.748" (19.00mm)
Package / Case：Horizontal, 4 PC Pad
Inductance @ Frequency：1.3 mH @ 100 kHz
Impedance @ Frequency：-
Qualification：-
Grade：-

Common Mode Chokes datasheet and documents for CMX1211X132B-10

CMX1211X132B-10

Common Mode Chokes Overview

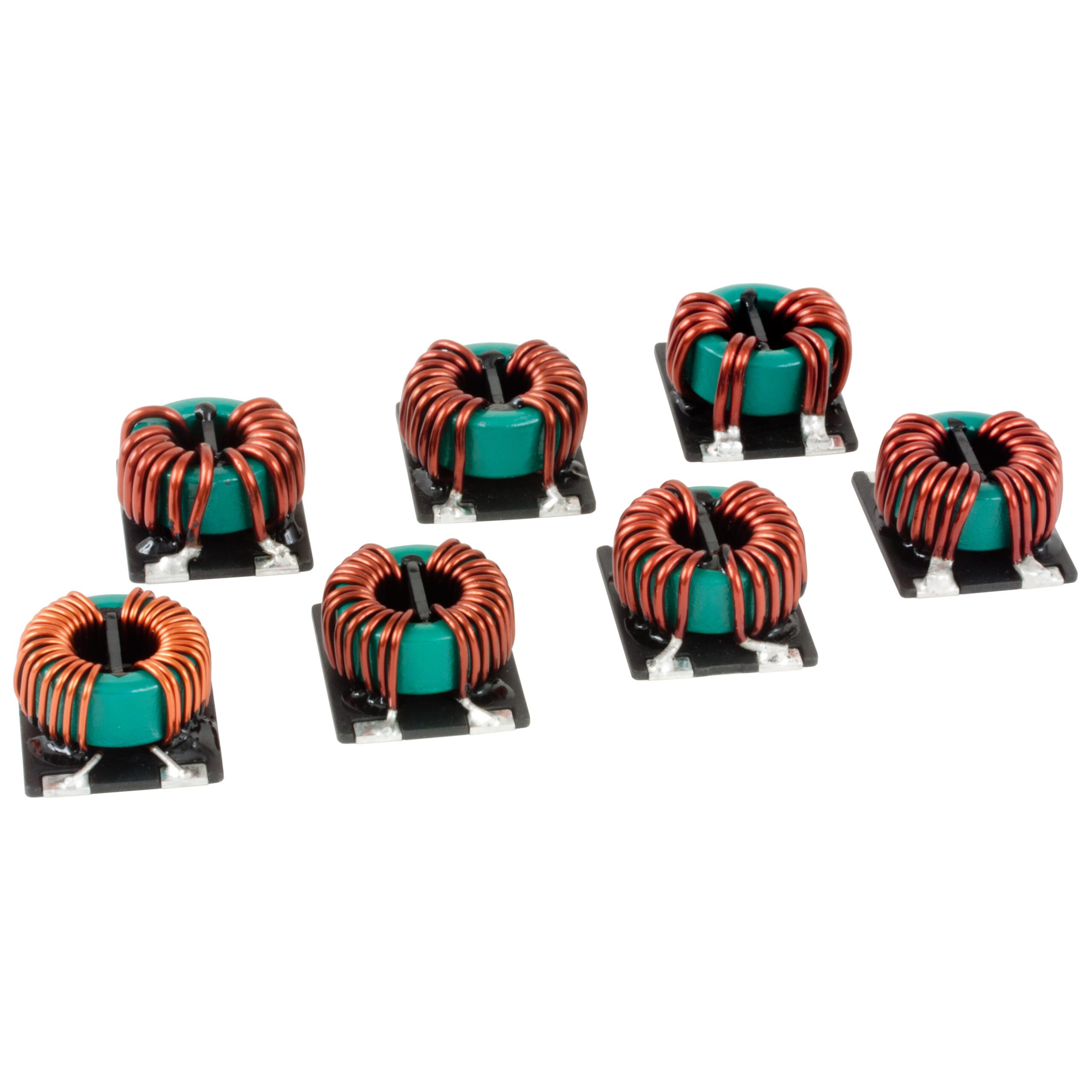

The CMX1211X132B-10 is a surface-mount common mode choke manufactured by Laird-Signal Integrity Products. It features a dual-line configuration designed for broadband electromagnetic interference filtering in signal integrity applications. The component exhibits an inductance of 1.3 mH at 100 kHz and supports a rated current of 11A. Its direct current resistance (DCR) is specified as 10 mOhm. The device utilizes a compact SMD package suitable for automated assembly processes.

Common Mode Chokes Feature Summary

Dual-line construction for effective common mode noise suppression
High saturation current capability for power line protection
Broadband frequency response characteristics

Common Mode Chokes Applications

Signal integrity management
Electromagnetic interference shielding
Power supply filtering

Common Mode Chokes Procurement Notes

Verify the manufacturer part number against official Laird documentation to ensure authenticity. Confirm that the specific ordering suffix matches the required electrical parameters, particularly the inductance value and current rating. Check RoHS compliance status and environmental classifications prior to finalizing procurement orders.

Common Mode Chokes Selection Notes

Select this component when high current handling up to 11A is required alongside significant inductance for noise reduction. Ensure the PCB footprint accommodates the surface mount dimensions. Evaluate thermal dissipation requirements given the low DCR specification under load conditions.

Common Mode Chokes Part Context

This component belongs to the CMX series of common mode chokes from Laird-Signal Integrity Products. It is categorized under inductors, chokes, and coils within the broader portfolio of signal integrity and EMI filtering solutions provided by the manufacturer.
