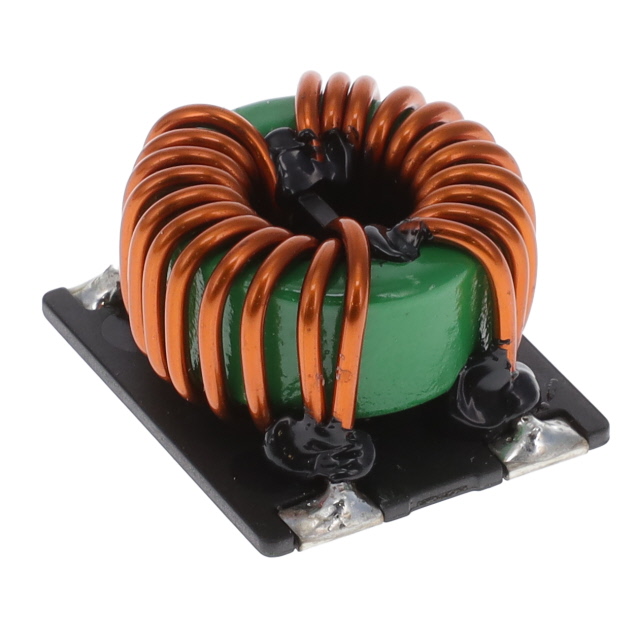

CMX1211Y801B-10 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Laird-Signal Integrity Products. Its product description is CMC 800UH 16A 2LN SMD. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for CMX1211Y801B-10
- Description：CMC 800UH 16A 2LN SMD
- Series：CMX
- Mfr：Laird-Signal Integrity Products
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：16A
- DC Resistance (DCR) (Max)：5.3mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：1.240" L x 0.984" W (31.50mm x 25.00mm)
- Height (Max)：0.748" (19.00mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：800 µH @ 100 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Common Mode Chokes datasheet and documents for CMX1211Y801B-10
Common Mode Chokes Overview
The CMX1211Y801B-10 is a surface-mount common mode choke manufactured by Laird-Signal Integrity Products. It features two lines with an inductance of 800 µH at 100 kHz and a maximum DC resistance of 5.3 mOhm. The component supports a rated current of 16A and operates within a temperature range of -40°C to +125°C.
Common Mode Chokes Feature Summary
- Provides common mode noise suppression for dual-line circuits
- Designed for surface-mount PCB integration
- Engineered for high-current power line applications
Common Mode Chokes Applications
- Power supply input filtering
- Signal line noise suppression
- EMI reduction in electronic assemblies
Common Mode Chokes Procurement Notes
Verify the manufacturer part number against official Laird documentation to ensure accuracy. Confirm that the required specifications, including inductance, current rating, and package type, align with the design requirements before procurement.
Common Mode Chokes Selection Notes
Select this component for designs requiring robust common mode filtering on dual conductors. Ensure the circuit current does not exceed the 16A rating and verify that the surface-mount footprint matches the PCB layout constraints.
Common Mode Chokes Part Context
This component belongs to the CMX series of common mode chokes from Laird-Signal Integrity Products. It is designed for SMT assembly and offers high inductance values suitable for suppressing electromagnetic interference in power and signal lines.
