CN113-230-0001(01)VE

$23.75

Description：CONN FMALE 230POS 0.020-NICKEL
Series：-
Mfr：Yamaichi Electronics
Package：Bulk

SKU:be5c6a20950e Category: Edgeboard Connectors Brand: Yamaichi Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN FMALE 230POS 0.020-NICKEL
Series：-
Mfr：Yamaichi Electronics
Package：Bulk
Card Type：MXM 2.0
Gender：Female
Number of Positions/Bay/Row：-
Number of Positions：230
Card Thickness：-
Number of Rows：2
Pitch：0.020" (0.50mm)
Read Out：-
Features：-
Mounting Type：Surface Mount
Termination：Solder
Contact Material：-
Contact Finish：Gold-Nickel
Contact Finish Thickness：Flash
Contact Type：-
Color：Black
Flange Feature：Straddle Mount Opening, Threaded, 0.091" (2.30mm)
Operating Temperature：-40°C ~ 85°C

Download product information

CN113-230-0001(01)VE

Overview

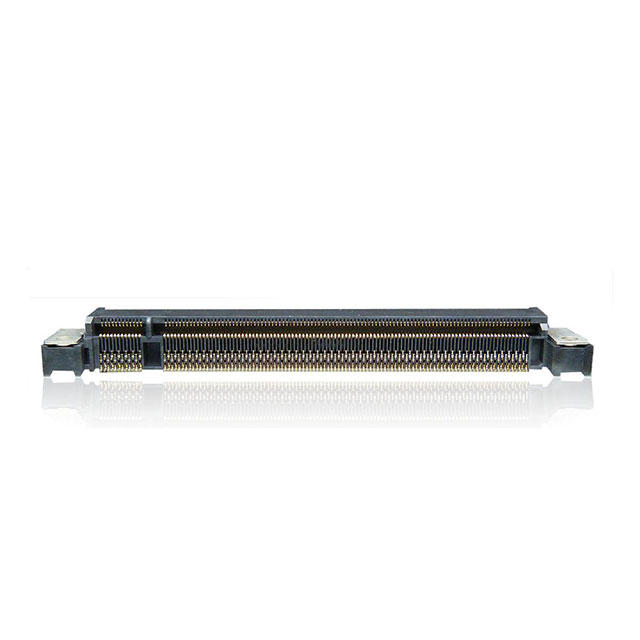

The CN113-230-0001(01)VE is a standard card edge connector manufactured by Yamaichi Electronics. It features a 230-position female configuration with a 0.5 mm pitch, designed for auto-info modular applications. The connector utilizes gold (Au) plating on the contacts to ensure reliable signal transmission and corrosion resistance. It supports a maximum operating temperature of +85°C and a minimum of -40°C. The insulation resistance is rated at 250 MOhms. The component is supplied in reel packaging, facilitating automated assembly processes.

Feature Summary

Female card edge connector design for modular board connections
Gold-plated contacts for enhanced conductivity and durability
Standard pitch geometry for precise alignment
Reel packaging for efficient surface-mount processing

Applications

Automotive infotainment system modules
Data communication interface boards
Electronic control unit interconnects

Procurement Notes

Verify the specific ordering suffix and revision level against the official Yamaichi Electronics datasheet to ensure compatibility with the target PCB footprint. Confirm that the reel packaging format aligns with available pick-and-place equipment capabilities. Check RoHS compliance documentation for regulatory adherence in the destination market. Ensure storage conditions maintain contact integrity prior to soldering.

Selection Notes

Select this component when a high-density 230-position connection is required for automotive or industrial modular systems. The 0.5 mm pitch allows for compact board layouts while maintaining signal integrity. Gold plating is essential for environments requiring long-term reliability without oxidation. Verify thermal ratings match the operational environment limits of the host device.

Part Context

This part belongs to Yamaichi's standard card edge connector series, specifically tailored for modular applications. It serves as a critical interface between mainboards and peripheral modules. The design emphasizes mechanical stability and electrical performance in space-constrained electronic assemblies.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-reference pin count, pitch, and mounting style when evaluating alternative components from other manufacturers.
