CN2-F30

Power Line Filter Modules Overview

The DIT CN2-F30 is a single-phase EMI/EMC line filter module designed for power line noise suppression. It operates at a rated current of 3 A and a voltage of 250 VAC within the 50–60 Hz frequency range. The component utilizes a single-stage filtering architecture housed in a general-purpose plastic case. It features quick connect terminals for circuit integration.

Power Line Filter Modules Feature Summary

• Single-stage EMC/EMI filtering for power lines
• Quick connect terminal interface
• General-purpose plastic housing

Power Line Filter Modules Applications

• Power supply input stages
• Electronic equipment noise suppression
• Industrial control circuits

Power Line Filter Modules Procurement Notes

Verify the manufacturer designation, as sources indicate Dong Il Technology (DIT) or SME branding. Confirm the specific pin configuration and mounting style against the official datasheet before integration. Ensure the 3A rating meets the system's continuous load requirements without derating issues.

Power Line Filter Modules Selection Notes

Select this model for applications requiring basic single-phase noise attenuation at low currents. The plastic case offers cost-effective protection but may limit thermal performance compared to metal housings. Verify that the quick-connect terminals are compatible with the PCB or wire harness design.

Power Line Filter Modules Part Context

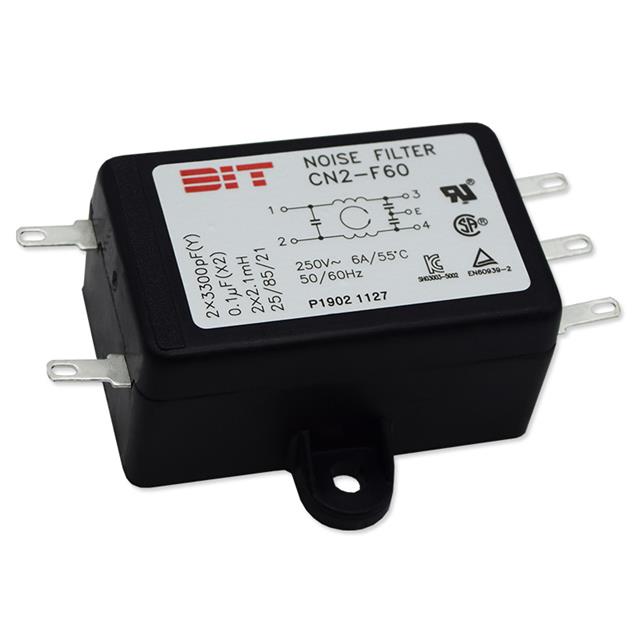

This component belongs to the CN2 series of power filters from Dong Il Technology. The series includes variants with different current ratings, such as the CN2-F60. These modules are standardized for general EMI suppression in AC power inputs.

Power Line Filter Modules Replacement Considerations

Check for direct substitutes from Dong Il Technology with identical current and voltage ratings. Ensure any replacement maintains the single-stage topology and quick-connect form factor to fit existing mechanical constraints.
