Product Detailed Parameters
- Description：CONN EDGE DUAL FML 314POS 0.020
- Series：-
- Mfr：Yamaichi Electronics
- Package：Tape & Reel (TR)
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：-
- Number of Positions：314
- Card Thickness：-
- Number of Rows：2
- Pitch：0.020" (0.50mm)
- Read Out：Dual
- Features：Board Guide
- Mounting Type：Surface Mount
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold-Nickel
- Contact Finish Thickness：-
- Contact Type：-
- Color：Black
- Flange Feature：-
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

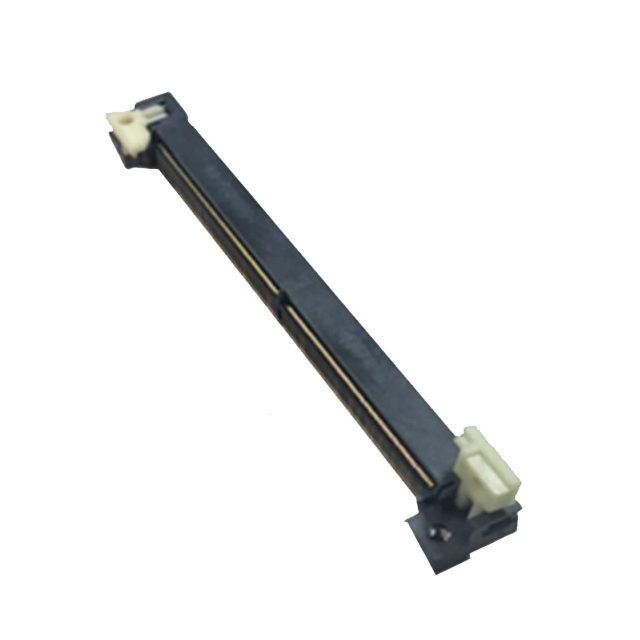

The CNU113-314-2201-VE is a card edge connector manufactured by Yamaichi Electronics. It features 314 contacts arranged in two rows with female interface type and right-angle surface mount terminals. The housing material is liquid crystal polymer (LCP). Electrical ratings include a current capacity of 700 mA, voltage rating of 50 V, and data rate support up to 12 Gb/s. Contact plating is gold. This component is classified as an I/O connector suitable for high-density applications.
Feature Summary
- High-density configuration with 314 contacts across two rows
- Supports data rates up to 12 Gb/s for high-speed signal transmission
- Constructed with liquid crystal polymer housing for durability
- Gold-plated contacts ensure reliable electrical connectivity
Applications
- Edgeboard interconnections
- High-speed I/O interfaces
- Industrial control systems requiring robust connectivity
Procurement Notes
Verify the specific suffix VE against official Yamaichi documentation to confirm exact mechanical and material specifications. Ensure compatibility with mating edgeboards regarding thickness and plating requirements. Confirm that the 50 V rating and 700 mA current limit align with system design constraints before procurement.
Selection Notes
Select this connector when a high-pin-count, right-angle surface mount solution is required. The 12 Gb/s data rate capability makes it suitable for modern high-speed digital interfaces. Verify PCB layout compatibility with the right-angle mounting style and ensure sufficient clearance for the LCP housing during assembly.
Part Context
This part belongs to Yamaichi Electronics' card edge connector portfolio, designed for reliable board-to-board or board-to-backplane connections. The series emphasizes high density and signal integrity, utilizing gold contacts and LCP materials to meet demanding industrial and commercial standards.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Cross-reference pin counts, pitch, and mounting styles carefully if considering alternative manufacturers.
