CO75H4-100.000-33JDTSNK

$1.76

Description：XTAL OSC XO 100.0000MHZ CMOS SMD
Series：CO75H4
Mfr：Suzhou Hangjing Elec&Tech Co.,Ltd
Package：Tape & Reel (TR),Strip

SKU:f4d89d7cdf7a Category: Oscillators Brand: Suzhou Hangjing Elec&Tech Co.,Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CO75H4-100.000-33JDTSNK is listed in the Oscillators range at ChipApex. The manufacturer field lists Suzhou Hangjing Elec&Tech Co.,Ltd. Its product description is XTAL OSC XO 100.0000MHZ CMOS SMD. Review the specifications below when checking this part for your BOM.

Oscillators specifications for CO75H4-100.000-33JDTSNK

Description：XTAL OSC XO 100.0000MHZ CMOS SMD
Series：CO75H4
Mfr：Suzhou Hangjing Elec&Tech Co.,Ltd
Package：Tape & Reel (TR),Strip
Base Resonator：Crystal
Type：XO (Standard)
Frequency：100 MHz
Function：Enable/Disable
Output：CMOS
Voltage - Supply：3.3V
Frequency Stability：±30ppm
Absolute Pull Range (APR)：-
Operating Temperature：-40°C ~ 85°C
Spread Spectrum Bandwidth：-
Current - Supply (Max)：35mA
Ratings：-
Mounting Type：Surface Mount
Package / Case：4-SMD, No Lead
Size / Dimension：0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max)：0.055" (1.40mm)
Supplier Device Package：-

Oscillators datasheet and documents for CO75H4-100.000-33JDTSNK

CO75H4-100.000-33JDTSNK

Oscillators Overview

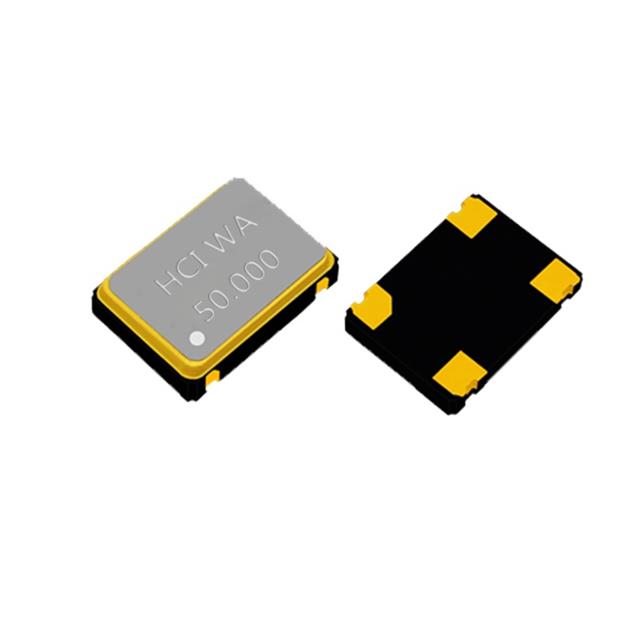

The CO75H4-100.000-33JDTSNK is a standard CMOS crystal oscillator manufactured by Suzhou Hangjing Elec&Tech Co., Ltd. It operates at a frequency of 100.0000 MHz with a supply voltage of 3.3V. The device features an enable/disable control function and utilizes HCMOS output logic. It is housed in a compact 4-SMD, No Lead surface-mount package measuring 7.0 x 5.0 mm. The component supports frequencies ranging from 0.137 MHz to 166 MHz within the CO75H4 series.

Oscillators Feature Summary

Integrated enable and disable functionality for power management
HCMOS output logic compatibility
Lead-free and halogen-free construction
RoHS compliant design

Oscillators Applications

Digital signal processing systems
Communication equipment clocking
Embedded system timing references

Oscillators Procurement Notes

Verify the complete part number including suffixes to ensure correct voltage and package specifications. Confirm RoHS compliance status through official manufacturer documentation. Check datasheet for operating temperature range and load capacitance requirements before integration into final designs.

Oscillators Selection Notes

Select this model when a 100 MHz HCMOS clock source with enable control is required. Ensure the 3.3V supply voltage matches the system design. Verify that the 4-SMD no-lead package fits the PCB footprint constraints. Consider the 7.0 x 5.0 mm dimensions for spatial planning.

Oscillators Part Context

This component belongs to the CO75H4 series of quartz frequency control units produced by Suzhou Hangjing Elec&Tech Co., Ltd. Founded in 2014, the company specializes in research, development, and production of such components. The series covers a wide frequency range up to 166 MHz with various voltage options.

Oscillators Replacement Considerations

Cross-reference with other CO75H4 variants for different frequencies or voltages. Verify pinout and electrical characteristics against alternative suppliers' offerings. Ensure environmental compliance standards match project requirements.
