CP-01412140

Headers, Male Pins Overview

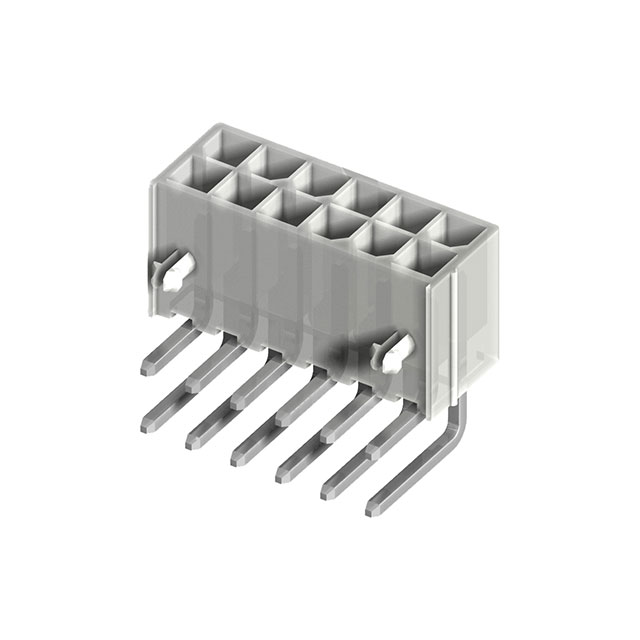

The CP-01412140 is a dual-row header connector from the CP-01 series, manufactured by Cvilux USA. It features 12 positions with a 0.165-inch (4.20mm) pitch and is designed for board-to-board or board-to-wire applications. The component utilizes brass contacts with tin plating and polyamide insulation rated UL94 V-0. It supports a maximum current of 9A at 600VAC and operates within a temperature range of -25°C to 85°C.

Headers, Male Pins Feature Summary

• Dual-row configuration with square contact shapes for secure mating
• Board lock feature ensures stable mechanical retention during assembly
• Four-wall shielding provides comprehensive protection against interference

Headers, Male Pins Applications

• Industrial control systems requiring robust power connections
• Consumer electronics utilizing high-current signal pathways
• Automotive electronic modules needing reliable interconnects

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required pin count and orientation. Confirm compliance with RoHS3 standards if environmental regulations apply. Ensure the PCB footprint aligns with the specified 4.20mm pitch dimensions. Check for any specific packaging requirements such as tape and reel availability versus bulk tray options.

Headers, Male Pins Selection Notes

Select this model when a right-angle, through-hole header is necessary for high-current applications up to 9A. The 4.20mm spacing accommodates thicker traces or cables compared to standard 2.54mm headers. Consider the board lock feature for vibration-prone environments. Verify that the operating temperature range meets the specific application's thermal requirements.

Headers, Male Pins Part Context

This component belongs to the CP-01 series of power connectors, which are characterized by their durability and high current handling capabilities. The series is widely used in industrial and automotive sectors where reliable electrical connections under demanding conditions are essential. The specific model offers a balance of mechanical stability and electrical performance.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 12-position count, 4.20mm pitch, and right-angle orientation. Compatible alternatives should offer similar current ratings and UL94 V-0 insulation materials. Verify that the mounting style and contact plating are equivalent to ensure seamless integration without redesigning the PCB layout.
