CP3030G

Overview

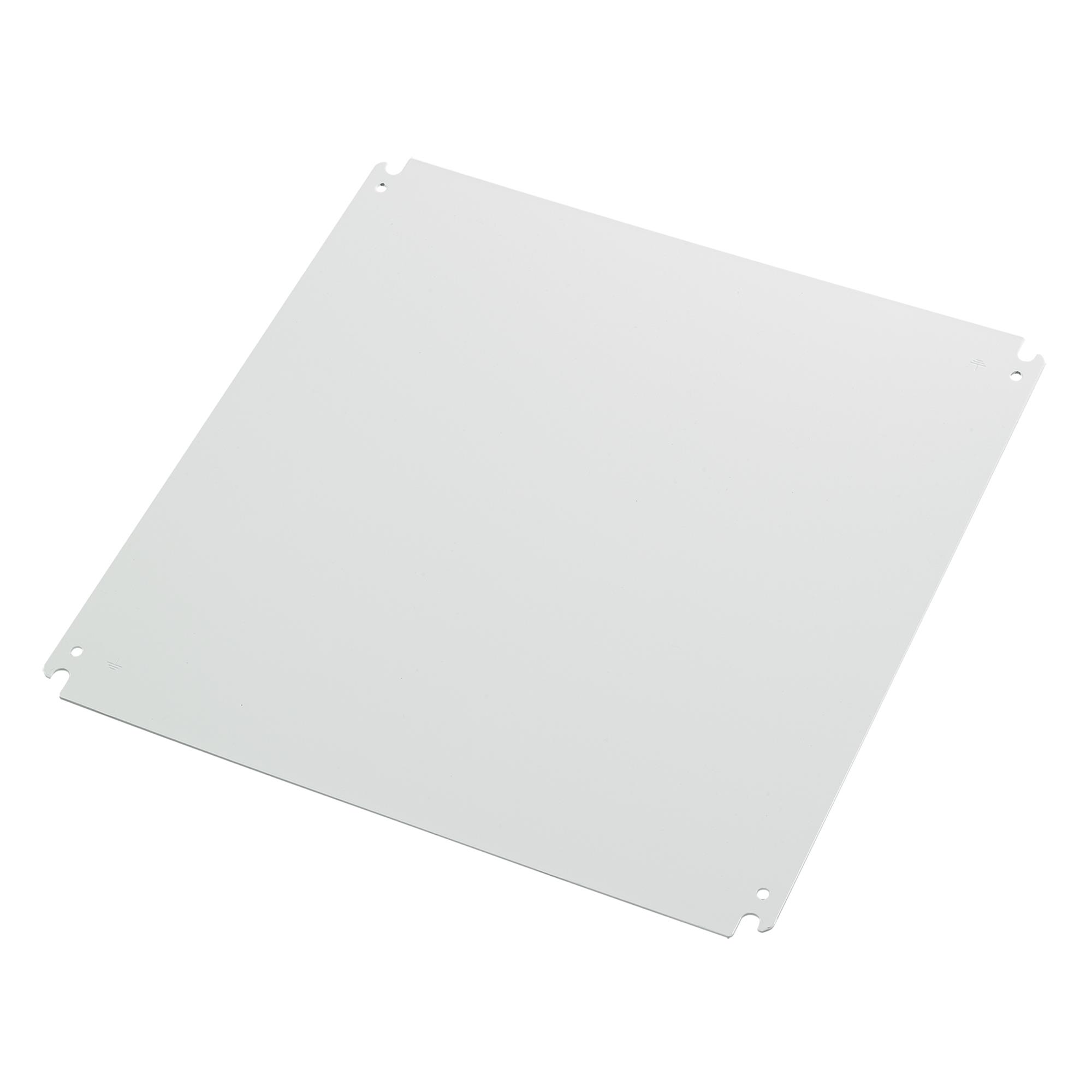

The CP3030G is an interior mounting panel designed for use with Hoffman Enclosures CONCEPT series enclosures. It features a galvanized steel construction with a conductive finish, suitable for organizing and installing electrical components such as circuit breakers and relays. The panel dimensions are 28.20 inches in height and width, fitting within a 30.00 x 30.00 inch enclosure footprint. Manufactured by nVent HOFFMAN, this component supports efficient internal layout management in industrial control applications.

Feature Summary

• Galvanized steel construction provides durability and corrosion resistance
• Conductive finish supports grounding requirements for electrical safety
• Designed specifically for integration with 30x30 inch CONCEPT series enclosures

Applications

• Mounting electrical components inside industrial control panels
• Organizing circuit breakers and relays within NEMA-rated enclosures
• Internal structural support for custom enclosure configurations

Procurement Notes

Verify compatibility with specific CONCEPT series enclosure models before procurement. Confirm that the conductive finish meets project grounding specifications. Ensure the 28.20-inch dimension aligns with available internal space. Check manufacturer documentation for any updates to material specifications or finishing processes.

Selection Notes

Select this panel when working with 30x30 inch CONCEPT enclosures requiring a conductive interior surface. Consider the 12-gauge steel thickness for structural rigidity. Evaluate whether the galvanized finish suits the environmental conditions of the installation site. Compare against non-conductive alternatives if grounding is not required.

Part Context

This part belongs to the Hoffman CONCEPT Panel series, which includes various sizes for different enclosure dimensions. It is categorized under box components and accessories. The product line focuses on providing standardized internal mounting solutions for industrial electrical enclosures manufactured by nVent HOFFMAN.

Replacement Considerations

No direct substitute part numbers are publicly confirmed for this specific model. Alternative panels from other manufacturers may require modification to fit the 30x30 inch enclosure frame. Verify dimensional accuracy and mounting hole patterns before considering cross-brand replacements.
