CP3506P1V00-NH

Headers, Male Pins Overview

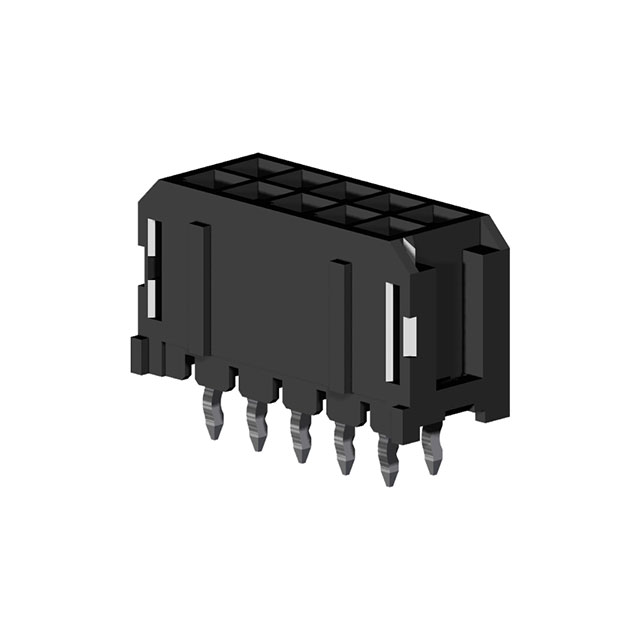

The CP3506P1V00-NH is a single-row rectangular header connector manufactured by Cvilux USA. It features six male pin contacts with a 3.00mm (0.118 inch) pitch, designed for through-hole board mounting. The housing is constructed from halogen-free PA6T insulation material in black, rated UL94 V-0. Contacts are brass with tin plating on both mating and tail sections. Rated at 7A current and 600VAC voltage, it operates within -40°C to 105°C. The assembly includes a four-wall shielded shroud and utilizes slide-lock fastening.

Headers, Male Pins Feature Summary

• Through-hole mounting configuration with slide-lock retention mechanism
• Halogen-free PA6T insulation material ensuring UL94 V-0 flammability rating
• Four-wall shielded shroud design for enhanced signal integrity
• Tin-plated brass contacts compatible with standard crimping processes

Headers, Male Pins Applications

• Board-to-cable interconnections
• Wire-to-board assemblies
• General-purpose electronic circuitry
• Industrial control modules

Headers, Male Pins Procurement Notes

Verify the specific suffix 'NH' against official Cvilux documentation to confirm halogen-free compliance status. Ensure compatibility with mating receptacles such as the CP3506S series. Confirm that the required contact termination method matches the connector's specified crimp or solder capabilities. Cross-reference the MSL level and REACH status with current regulatory requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row, 6-position header is required for PCB integration. The 3.00mm pitch accommodates moderate density layouts. Consider the 7A current rating and 600VAC voltage limit for power distribution needs. The through-hole style suits high-reliability applications requiring robust mechanical anchoring compared to surface-mount alternatives.

Headers, Male Pins Part Context

This part belongs to the CP35 series of rectangular power connectors. It pairs with corresponding housings like the CP3506S001S-NH. The series supports various pin counts and row configurations. Cvilux designs these components for diverse industrial and consumer electronics markets, emphasizing durability and standardized dimensions.

Headers, Male Pins Replacement Considerations

Direct substitutes include the CP3506P1V00-S-NH variant. Verify identical electrical ratings and mechanical dimensions before substitution. Ensure mating interface compatibility with existing receptacle assemblies.
