CP6002P1H00-NH

Headers, Male Pins Overview

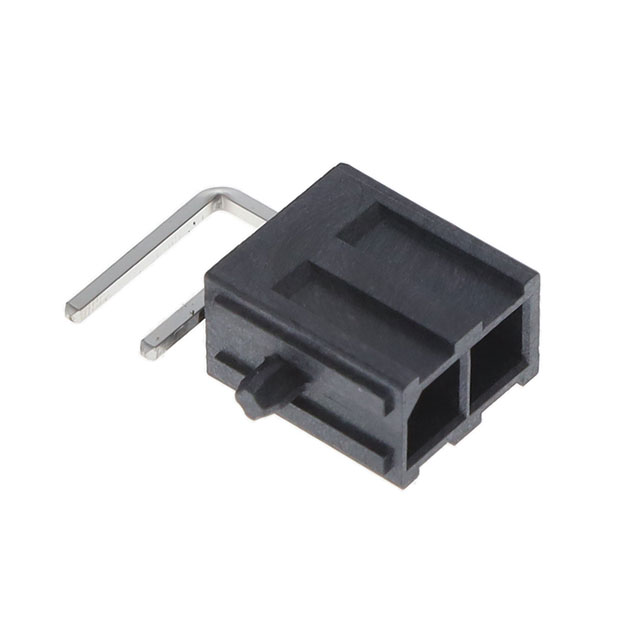

The CP6002P1H00-NH is a rectangular header connector manufactured by Cvilux USA, designed for board-to-board or cable-to-board interconnections. This component features a male pin configuration with two positions arranged in a single row. It utilizes a through-hole mounting method and is constructed with a right-angle orientation to facilitate specific PCB layout requirements. The pitch between contacts is specified as 0.224 inches (5.70mm), providing a standardized spacing for compatible mating connectors. The contact length for the post is documented at 0.142 inches (3.61mm). The connector housing typically employs square contact shapes, and the internal contacts are fabricated from copper alloy materials to ensure reliable electrical conductivity and mechanical durability during insertion cycles.

Headers, Male Pins Feature Summary

• Right-angle through-hole mounting design for space-constrained PCB layouts
• Two-position male pin configuration with 5.70mm pitch spacing
• Copper alloy contact construction with square terminal geometry

Headers, Male Pins Applications

• Consumer electronics internal interconnects
• Industrial control board connections
• Data center hardware assembly

Headers, Male Pins Procurement Notes

Verify the exact part number suffix against the manufacturer's current documentation to confirm plating specifications and material certifications. Ensure that the right-angle orientation and 5.70mm pitch align with the target PCB footprint and mating connector requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle male header is required for two-channel signal or power transmission. The 5.70mm pitch is larger than standard 2.54mm headers, so verify clearance constraints. The through-hole technology offers robust mechanical retention compared to surface-mount alternatives.

Headers, Male Pins Part Context

This part belongs to Cvilux's series of rectangular headers and female sockets. The CP prefix typically denotes a specific series within their connector portfolio, often characterized by standard pitch dimensions and through-hole termination methods suitable for general electronic assemblies.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2-position count, 5.70mm pitch, right-angle orientation, and through-hole termination. Verify that any alternative manufacturer's component maintains identical contact material properties and housing dimensions to ensure mechanical compatibility.
