CP6002P1V00-NH

Headers, Male Pins Overview

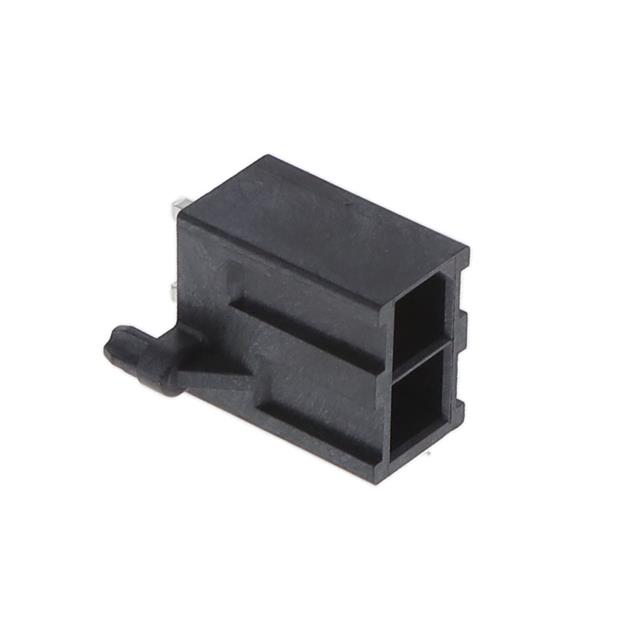

The CP6002P1V00-NH is a vertical male pin header manufactured by Cvilux USA. It features two positions with a pitch of 5.70mm (0.224 inches). The connector is designed for through-hole termination and includes a straight cable end type. The housing material is polyamide, and the contacts are made from phosphor bronze with tin plating. This component supports a voltage rating of 100V and an operating temperature range of -25°C to 85°C. The height above board is 5.70mm.

Headers, Male Pins Feature Summary

• Vertical male pin header configuration for PCB mounting
• Through-hole termination method for secure attachment
• Tin-plated phosphor bronze contacts for conductivity
• Polyamide housing material with halogen-free composition

Headers, Male Pins Applications

• Consumer electronics interconnects
• Cable-to-board connections
• General purpose electronic assemblies

Headers, Male Pins Procurement Notes

Verify the specific part number CP6002P1V00-NH against official Cvilux documentation to confirm pin count, pitch, and termination style. Ensure compatibility with mating connectors such as CP6002SN010 or CP6002P1H00-NH if system integration requires matched pairs. Check RoHS compliance status and lead time requirements before ordering.

Headers, Male Pins Selection Notes

Select this component when a vertical, two-position header with a 5.70mm pitch is required for through-hole applications. Consider the 1A current rating and 100V voltage limit for circuit design constraints. Verify that the 5.70mm height above board fits within the mechanical envelope of the target assembly.

Headers, Male Pins Part Context

This part belongs to the CP6002 series of rectangular connectors produced by Cvilux USA. The manufacturer specializes in FFC, FPC, and wire harness solutions primarily for consumer electronics. The CP6002 series offers various configurations including surface mount and right-angle options, providing flexibility for different PCB layout requirements.

Headers, Male Pins Replacement Considerations

Mating products include CP6002SN010 and CP6002P1H00-NH. Verify dimensional compatibility and electrical ratings before substituting with generic equivalents. Ensure the replacement maintains the 5.70mm pitch and through-hole termination style.
