CP6006P1H00-NH

Headers, Male Pins Overview

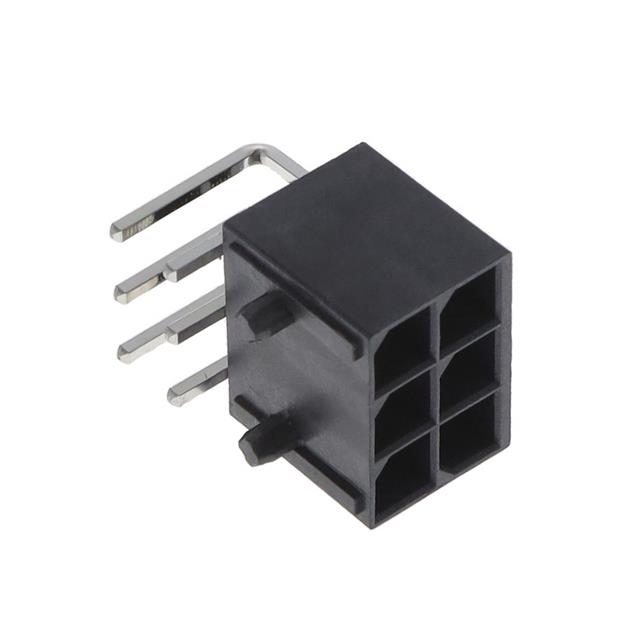

The CP6006P1H00-NH is a Cvilux USA rectangular connector header from the CP60 series. It features six male pins with a 5.70mm (0.224 inch) pitch in a two-row configuration. Designed for through-hole, right-angle mounting, it utilizes solder termination. The contacts are made of copper alloy with tin plating, housed in black, halogen-free liquid crystal polymer (LCP). Rated for 600VAC and 23A, it operates within a temperature range of -40°C to 105°C and meets UL94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• High voltage and current capacity suitable for power applications
• Shrouded four-wall housing design for secure mating
• Halogen-free LCP insulation material for environmental compliance
• Right-angle through-hole mounting for space-efficient PCB layout

Headers, Male Pins Applications

• Industrial control systems requiring robust power connections
• Data center infrastructure equipment
• Consumer electronics power interfaces
• General purpose board-to-board interconnects

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required pin count and pitch specifications before integration. Confirm compliance with RoHS3 and REACH regulations as stated in the manufacturer documentation. Ensure mating components, such as the corresponding socket housings, are selected from the same CP60 series to guarantee mechanical and electrical compatibility. Check datasheets for updated thermal ratings.

Headers, Male Pins Selection Notes

Select this component when high voltage isolation and significant current carrying capability are required in a compact form factor. The two-row arrangement allows for higher density compared to single-row alternatives. Consider the right-angle orientation for vertical board stacking or edge connectors. Verify that the operating temperature range aligns with the environmental conditions of the target application.

Headers, Male Pins Part Context

This connector belongs to the CP60 series, which is designed for power applications. The series offers various pin counts and configurations while maintaining consistent 5.70mm spacing. It is manufactured by Cvilux USA, a provider of electronic connectors, FFC cables, and wire harnesses primarily for industrial and consumer markets.

Headers, Male Pins Replacement Considerations

Compatible mating sockets include CP6006SN010. Ensure substitute parts maintain the 5.70mm pitch and two-row male header configuration. Verify that any alternative maintains the 600VAC rating and through-hole mounting style for direct replacement.

Headers, Male Pins FAQ

What is the rated voltage and current for this connector?

The CP6006P1H00-NH has a rated voltage of 600VAC and a current rating of 23A.

Is the connector shrouded?

Yes, the connector features a shrouded four-wall housing design to protect the contacts during mating.
