CP6008P1H00-NH

Headers, Male Pins Overview

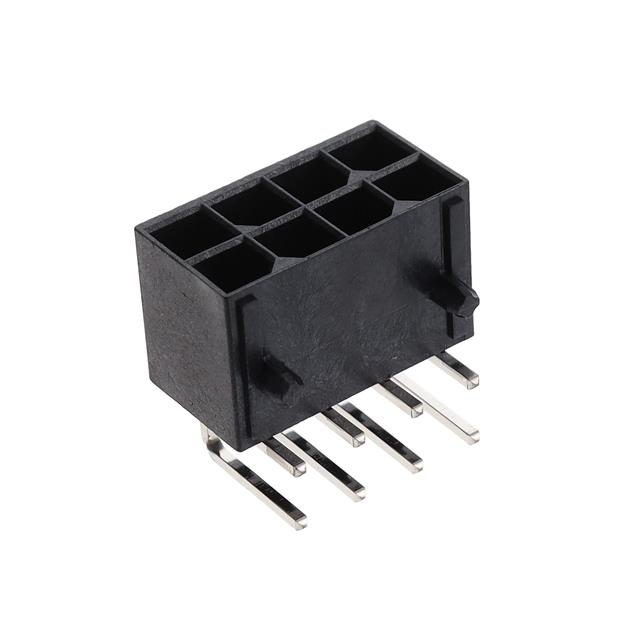

The CP6008P1H00-NH is a horizontal header connector from the CP60 series by Cvilux USA. It features an 8-position, 2-row male pin configuration with a 5.70mm pitch. Designed for through-hole right-angle mounting, it utilizes copper alloy contacts with tin plating and a black halogen-free liquid crystal polymer (LCP) insulation. The connector supports a rated current of 23A at 600VAC, operates within a temperature range of -40°C to 105°C, and meets UL94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• High-voltage capability with 600VAC rating and 23A current capacity
• Dual-row shrouded design providing four-wall shielding
• Halogen-free LCP insulation for enhanced thermal stability
• Slide-lock retention mechanism for secure mating

Headers, Male Pins Applications

• Industrial control systems requiring high voltage isolation
• Power supply interconnections in consumer electronics
• Heavy-duty board-to-board connections in automotive applications

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required 8-position count and two-row configuration. Confirm compatibility with mating socket CP6008SN010. Ensure the application environment stays within the specified -40°C to 105°C operating range. Check for RoHS3 compliance requirements if restricted substances are prohibited in the target market.

Headers, Male Pins Selection Notes

Select this component when high voltage isolation and significant current carrying capacity are required in a compact form factor. The 5.70mm pitch distinguishes it from standard signal headers. Consider the right-angle orientation for space-constrained PCB layouts. Verify that the slide-lock feature aligns with the mechanical constraints of the assembly process.

Headers, Male Pins Part Context

This connector belongs to the CP60 series, which is designed for power applications. The series offers various pin counts and pitches to accommodate different power distribution needs. The CP6008P1H00-NH specifically addresses the need for robust, high-current connections in industrial and consumer electronic devices where reliability under thermal stress is critical.

Headers, Male Pins Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model. Users must verify dimensional and electrical compatibility if considering alternative manufacturers. Mating sockets such as CP6008SN010 are available from the same manufacturer.
