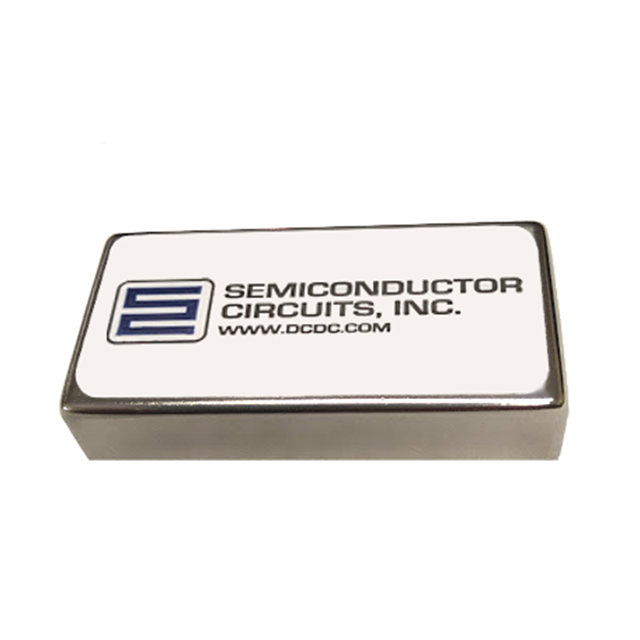

CP75B1115218P

CP75B1115218P is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Semiconductor Circuits, Inc.. Its product description is 5.0V 15A 9-36VIN 1X2 POS ENB. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for CP75B1115218P

• Description：5.0V 15A 9-36VIN 1X2 POS ENB
• Series：CP75 (75W)
• Mfr：Semiconductor Circuits, Inc.
• Package：Tray
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：9V
• Voltage - Input (Max)：36V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：15A
• Power (Watts)：75 W
• Voltage - Isolation：2 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output, Remote On/Off, Remote Sense
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：90%
• Mounting Type：Through Hole
• Package / Case：6-DIP Module
• Size / Dimension：1.94" L x 0.94" W x 0.33" H (49.3mm x 23.9mm x 8.4mm)
• Supplier Device Package：-
• Control Features：Enable, Active High
• Approval Agency：CSA, TUV, UL
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for CP75B1115218P
