CPD1717BA-150M

Fixed Inductors Overview

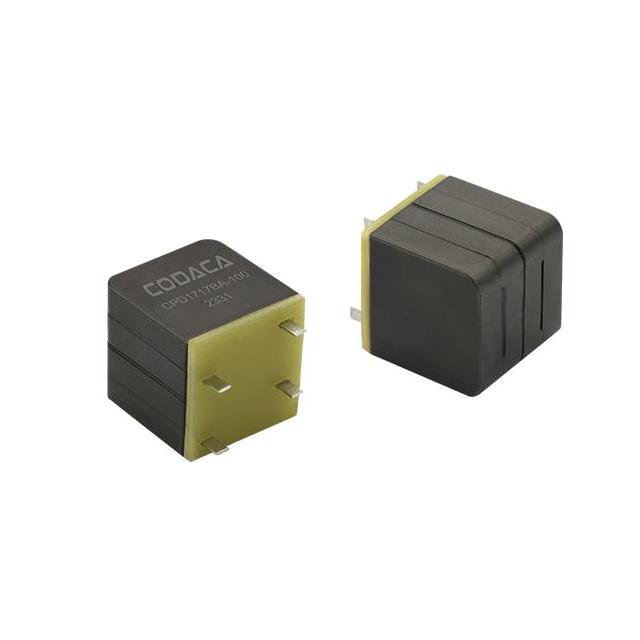

The CPD1717BA-150M is a shielded wirewound power inductor manufactured by CODACA. It features a 15 µH inductance rating and supports a maximum current capacity of 14 A. The component exhibits a maximum DC resistance of 13 mOhm and utilizes a vertical, 4 PC pin package configuration.

Fixed Inductors Feature Summary

• Shielded wirewound construction for electromagnetic interference resistance
• High current handling capability suitable for power amplifier applications
• Vertical mounting design with four printed circuit board pins

Fixed Inductors Applications

• Class-D power amplifiers
• Digital audio systems
• Power filtering circuits

Fixed Inductors Procurement Notes

Verify the specific ordering suffix to ensure the correct inductance value and tolerance match the design requirements. Confirm that the vertical package dimensions and pin spacing are compatible with the target PCB layout. Check for RoHS compliance status if environmental regulations apply to the final assembly.

Fixed Inductors Selection Notes

Select this component when high current ratings and low DC resistance are critical for efficiency. The shielded structure minimizes magnetic field leakage, making it suitable for dense layouts. Ensure the operating temperature range accommodates the thermal environment of the application.

Fixed Inductors Part Context

This part belongs to the CPD1717BA series of two-in-one power inductors designed specifically for Class-D amplifiers. The series integrates power supply and filtering functions to support higher current demands while reducing noise in digital audio environments.

Fixed Inductors Replacement Considerations

Consult official CODACA documentation for direct substitutes within the CPD1717BA series or other high-current shielded wirewound inductors. Verify electrical parameters and physical footprint compatibility before substitution.
