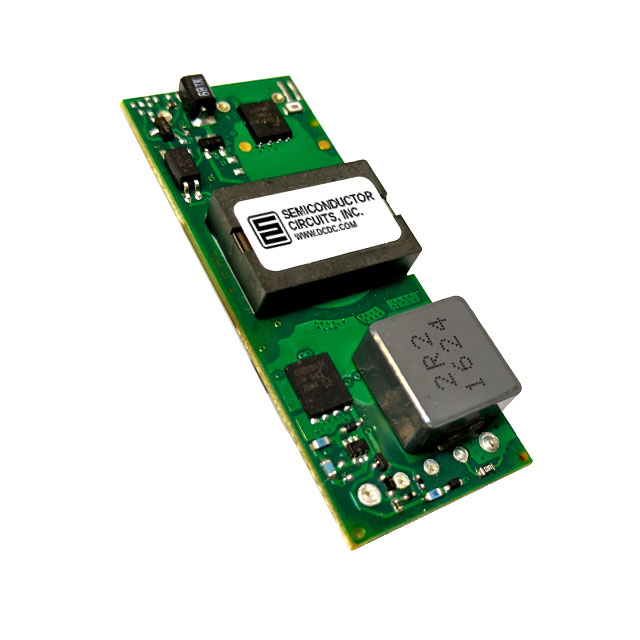

CPE10C48N

CPE10C48N is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Semiconductor Circuits, Inc.. Its product description is DC DC CONVERTER 15V 150W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for CPE10C48N

• Description：DC DC CONVERTER 15V 150W
• Series：CPE
• Mfr：Semiconductor Circuits, Inc.
• Package：Tray
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：15V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：10A
• Power (Watts)：150 W
• Voltage - Isolation：2.25 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output, Remote On/Off, Remote Sense
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：93.50%
• Mounting Type：Through Hole
• Package / Case：Eighth Brick
• Size / Dimension：2.30" L x 0.90" W x 0.41" H (58.4mm x 22.9mm x 10.3mm)
• Supplier Device Package：Eighth Brick
• Control Features：Enable, Active Low
• Approval Agency：CSA, TUV, UL
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for CPE10C48N
