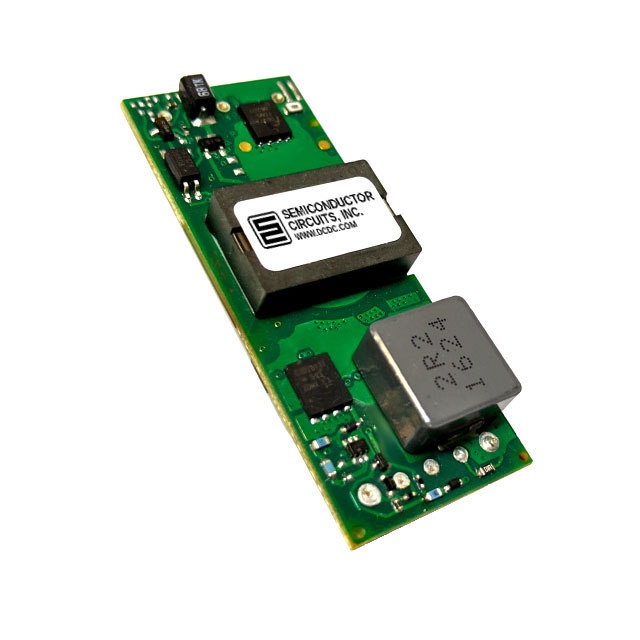

CPE30K48N

CPE30K48N is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Semiconductor Circuits, Inc.. Its product description is 1.2V 30A 36-75VIN 8TH NEG ENB. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for CPE30K48N

• Description：1.2V 30A 36-75VIN 8TH NEG ENB
• Series：CPE
• Mfr：Semiconductor Circuits, Inc.
• Package：Tray
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：1.2V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：30A
• Power (Watts)：36 W
• Voltage - Isolation：2.25 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output, Remote On/Off, Remote Sense
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：84%
• Mounting Type：Through Hole
• Package / Case：Eighth Brick
• Size / Dimension：2.30" L x 0.90" W x 0.47" H (58.4mm x 22.9mm x 11.8mm)
• Supplier Device Package：Eighth Brick
• Control Features：Enable, Active Low
• Approval Agency：CSA, TUV, UL
• Standard Number：-
• Grade：-
• Qualification：-
