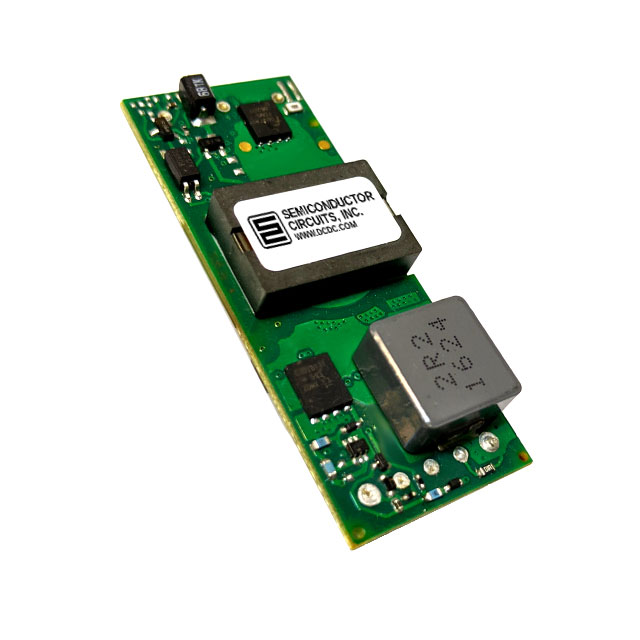

CPE3D18N

CPE3D18N is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Semiconductor Circuits, Inc.. Its product description is DC DC CONVERTER 24V 72W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for CPE3D18N

• Description：DC DC CONVERTER 24V 72W
• Series：CPE
• Mfr：Semiconductor Circuits, Inc.
• Package：Tray
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：9V
• Voltage - Input (Max)：36V
• Voltage - Output 1：24V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：3A
• Power (Watts)：72 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Adjustable Output, Remote On/Off, Remote Sense
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：92%
• Mounting Type：Through Hole
• Package / Case：Eighth Brick
• Size / Dimension：2.30" L x 0.90" W x 0.46" H (58.4mm x 22.9mm x 11.8mm)
• Supplier Device Package：Eighth Brick
• Control Features：Enable, Active Low
• Approval Agency：CSA, TUV, UL
• Standard Number：-
• Grade：-
• Qualification：-
