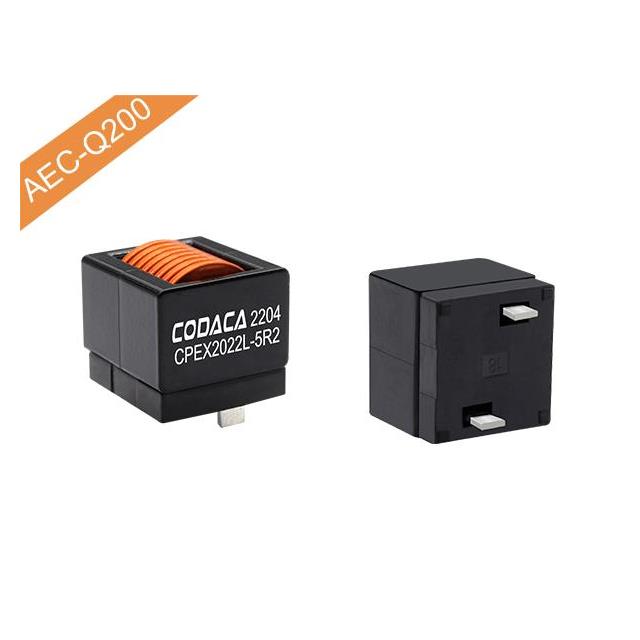

CPEX2022L-220MC is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists CODACA. Its product description is THT HIGH CURRENT POWER INDUCTOR. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for CPEX2022L-220MC
- Description：THT HIGH CURRENT POWER INDUCTOR
- Series：CPEX2022L
- Mfr：CODACA
- Package：Tray
- Type：Wirewound
- Material - Core：Metal Composite
- Inductance：22 µH
- Tolerance：±20%
- Current Rating (Amps)：24 A
- Current - Saturation (Isat)：27A
- Shielding：Shielded
- DC Resistance (DCR)：4.46mOhm Max
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：AEC-Q200
- Operating Temperature：-55°C ~ 150°C
- Inductance Frequency - Test：100 kHz
- Mounting Type：Through Hole
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：0.874" L x 0.807" W (22.20mm x 20.50mm)
- Height - Seated (Max)：0.827" (21.00mm)
- Features：Flat Wire, High Current, Soft Saturation
Fixed Inductors datasheet and documents for CPEX2022L-220MC
Fixed Inductors Overview
The CPEX2022L-220MC is a fixed shielded wirewound inductor manufactured by CODACA. It features an inductance of 22 µH and a high DC current rating of 24 A. The component has a maximum DC resistance of 4.46 mΩ. It utilizes a vertical package with two PC pin flat terminals for surface mounting. This power inductor is designed for applications requiring soft saturation characteristics and high current handling capabilities.
Fixed Inductors Feature Summary
- Shielded wirewound construction for reduced electromagnetic interference
- High current capability rated at 24 A
- Soft saturation magnetic properties
- Vertical mounting configuration with PC pin flat terminals
Fixed Inductors Applications
- Power supply circuits requiring high current filtering
- DC-DC converter output stages
- Industrial power management systems
- Automotive electronics power modules
Fixed Inductors Procurement Notes
Verify the specific manufacturer datasheet to confirm electrical tolerances and thermal performance limits before integration. Ensure that the vertical mounting footprint matches the PCB layout requirements. Cross-reference the 24 A current rating with actual operating conditions to prevent saturation issues during peak load scenarios.
Fixed Inductors Selection Notes
Select this component when high current handling and low DC resistance are critical design parameters. The 22 µH value suits moderate frequency switching applications. Consider the vertical form factor for space-constrained boards where height is not restricted. Evaluate thermal dissipation needs given the 4.46 mΩ resistance under full load conditions.
Fixed Inductors Part Context
This part belongs to the CPEX2022L series of high current power inductors from Shenzhen Codaca Electronic Co., Ltd. The series includes various inductance values such as 15 µH and 3.9 µH, all sharing similar high-current architectural designs. These components are engineered for robust performance in demanding power electronics environments.
