CPEX3222L-6R2MC

Fixed Inductors Overview

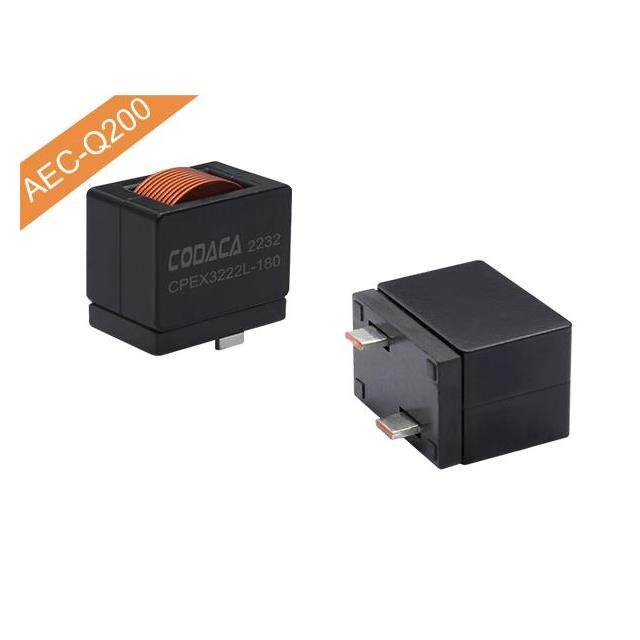

The CPEX3222L-6R2MC is a shielded wirewound power inductor from the CPEX3222L series, manufactured by CODACA. It features a composite core material and offers an inductance of 6.2 µH with a tolerance of ±20%. The component is rated for a maximum current of 65 A and has a maximum DC resistance (DCR) of 0.72 mΩ. Designed for vertical through-hole mounting with two pins, it operates within a temperature range of -55°C to 155°C. The unit exhibits soft saturation characteristics and is tested at 100 kHz.

Fixed Inductors Feature Summary

• Shielded wirewound construction utilizing composite core material for high efficiency
• Soft saturation behavior ensuring stable performance under varying load conditions
• Low DC resistance design achieved through flat wire winding technology

Fixed Inductors Applications

• High current power supply circuits requiring robust magnetic shielding
• DC-DC converter input and output filtering applications
• Industrial equipment power management systems

Fixed Inductors Procurement Notes

Verify the specific ordering suffix matches the required inductance value and tolerance before purchase. Confirm that the vertical through-hole package dimensions align with the target PCB footprint. Ensure the supplier provides documentation confirming RoHS3 compliance and halogen-free status as specified in the manufacturer's environmental declarations.

Fixed Inductors Selection Notes

Select this component when high saturation current capability and low core losses are critical for the application. The soft saturation characteristic makes it suitable for circuits experiencing instantaneous peak currents. Verify that the operating temperature range meets the environmental requirements of the final assembly.

Fixed Inductors Part Context

This part belongs to the CPEX3222L series of high current power inductors produced by Shenzhen Codaca Electronic Co., Ltd. The series is characterized by excellent DC bias capability and low loss properties. The specific model denotes a 6.2 µH variant within this family of shielded, vertically mounted components.

Fixed Inductors Replacement Considerations

Cross-reference with other CPEX3222L variants for different inductance values if electrical parameters require adjustment. Ensure any substitute maintains the same vertical pin configuration and thermal rating.
