CPPC7-A7B6-66.0TS

Oscillators Overview

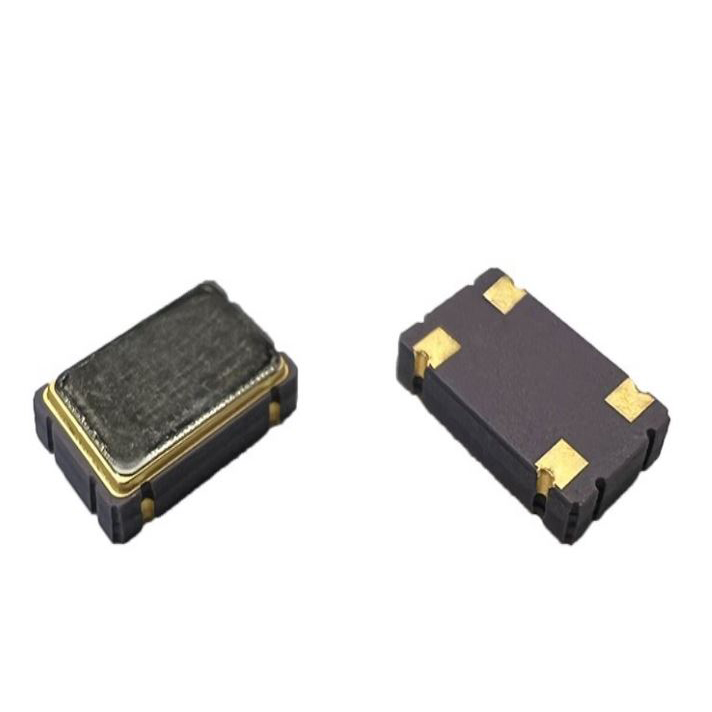

The CPPC7-A7B6-66.0TS is a CMOS output clock oscillator manufactured by Cardinal Components Inc. It operates at a nominal frequency of 66 MHz with a frequency stability of ±100 ppm. The device supports a supply voltage range from 3 V to 3.6 V and features tri-state output capability. It is designed for surface mount installation in a 4-pin ceramic package measuring 7.0 mm x 5.0 mm x 1.7 mm. The unit complies with RoHS standards and functions within an operating temperature range of -40 °C to +85 °C.

Oscillators Feature Summary

• CMOS output interface with tri-state control functionality
• Field programmable blank oscillator architecture
• Surface mount ceramic package construction
• RoHS compliant manufacturing process

Oscillators Applications

• General purpose digital clock signal generation
• Embedded system timing reference
• Industrial equipment synchronization

Oscillators Procurement Notes

Verify the specific part number against official Cardinal Components documentation to confirm compatibility with target circuit requirements. Ensure that the supply voltage, load capacitance, and operating temperature range align with the design specifications. Confirm compliance with environmental regulations such as RoHS before procurement. Cross-reference the manufacturer's latest datasheet for any updates regarding pin configuration or electrical characteristics.

Oscillators Selection Notes

Select this component when a fixed 66 MHz CMOS clock signal is required in a compact surface mount package. Consider the ±100 ppm stability specification for applications with moderate timing precision needs. Evaluate the tri-state feature if power management or bus isolation is necessary. Verify that the 3 V to 3.6 V supply range matches the system power rails. Assess the thermal performance within the specified -40 °C to +85 °C operating window.

Oscillators Part Context

This oscillator belongs to the CPP series of field programmable blank oscillators from Cardinal Components. These devices allow for on-the-fly programming using dedicated instruments like the PG-3000. The series offers various package styles and output types, providing flexibility for diverse electronic design requirements while maintaining standard form factors.
