CPPT7LZ-A3BP-50.0TS

Oscillators Overview

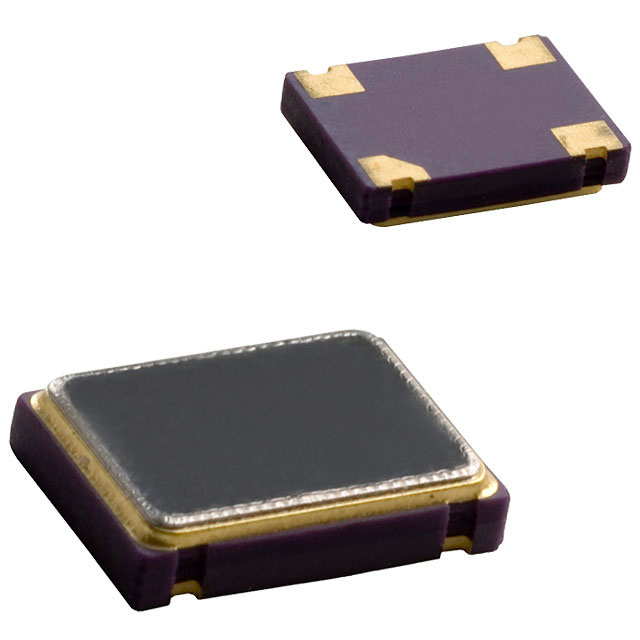

The CPPT7LZ-A3BP-50.0TS is a field programmable blank oscillator from Cardinal Components Inc., featuring a CMOS output and surface mount ceramic package with four pins. It operates at a nominal frequency of 50 MHz with a tri-state output capability and ±50 ppm stability. The device supports a supply voltage range of 3.0 V to 3.6 V, typically 3.3 V, and functions within an extended temperature range of -40 °C to +85 °C. Physical dimensions are 7.0 mm x 5.0 mm x 1.7 mm, with rise and fall times of 4 ns and an output load of 15 pF.

Oscillators Feature Summary

• Field programmable blank oscillator allowing on-the-fly frequency programming using PG-3000 or PG-3100 series instruments.
• Tri-state output functionality enables signal control for system management.
• Dual programming capability allows the component to be programmed twice.
• Surface mount ceramic construction ensures compatibility with automated assembly processes.

Oscillators Applications

• Consumer products requiring different electrical standards across global markets
• Modems needing real-time switching between transmit and receive frequencies
• Video signal conversion systems such as PAL to NTSC transitions

Oscillators Procurement Notes

Verify the specific part number against official Cardinal Components documentation to confirm the exact frequency, voltage, and package configuration. Ensure that the required programming equipment, such as the PG-3000 or PG-3100 series, is available for field programming. Confirm compliance with RoHS and lead-free standards if required by your manufacturing process. Check for any specific ordering suffixes that might alter the operational characteristics or packaging format.

Oscillators Selection Notes

Select this component when a customizable clock source with tri-state control is needed for embedded applications. Consider the extended temperature range and high stability for environments with thermal variations. Evaluate the surface mount package size for PCB space constraints. Ensure the design supports the necessary programming infrastructure for field configuration.

Oscillators Part Context

This oscillator belongs to the CPP series of field programmable blank oscillators from Cardinal Components Inc. These devices are designed to provide flexible timing solutions for various electronic systems. The series offers standard package options and can be programmed to specific frequencies upon request or in the field.

Oscillators Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult Cardinal Components directly for potential equivalents or updated series replacements.

Oscillators FAQ

What programming instruments are compatible with this oscillator?

The CPPT7LZ-A3BP-50.0TS can be programmed using the PG-3000 or PG-3100 field oscillator programming series instruments.

Can this oscillator be programmed more than once?

Yes, the field programmable blank oscillator can be programmed twice.
