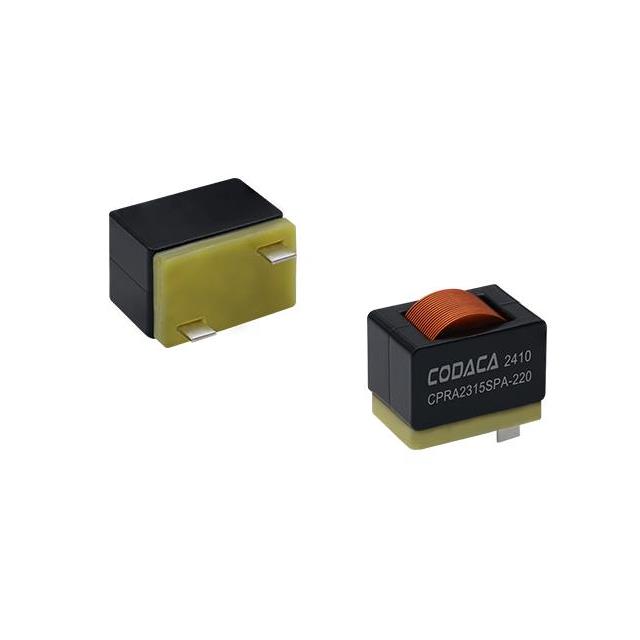

CPRA2315SPA-8R6MC is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists CODACA. Its product description is THT HIGH CURRENT POWER INDUCTOR. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for CPRA2315SPA-8R6MC
- Description：THT HIGH CURRENT POWER INDUCTOR
- Series：CPRA2315SPA
- Mfr：CODACA
- Package：Tape & Reel (TR),Cut Tape (CT)
- Type：Wirewound
- Material - Core：Composite
- Inductance：8.6 µH
- Tolerance：±20%
- Current Rating (Amps)：24 A
- Current - Saturation (Isat)：30A
- Shielding：Shielded
- DC Resistance (DCR)：3.4mOhm Max
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-55°C ~ 155°C
- Inductance Frequency - Test：-
- Mounting Type：Through Hole
- Package / Case：Vertical, 2 PC Pin
- Supplier Device Package：2315
- Size / Dimension：-
- Height - Seated (Max)：0.827" (21.00mm)
- Features：-
Fixed Inductors datasheet and documents for CPRA2315SPA-8R6MC
Fixed Inductors Overview
The CPRA2315SPA-8R6MC is a shielded wirewound power inductor from CODACA, designed for high-current applications. It features an inductance of 8.6 µH and a maximum DC resistance of 3.4 mOhm. The component supports a saturation current of 24 A and utilizes a vertical surface-mount package with two PC pins. This configuration ensures low loss and soft saturation characteristics suitable for demanding power systems.
Fixed Inductors Feature Summary
- Shielded wirewound construction for enhanced magnetic containment
- Soft saturation behavior to maintain performance under load
- Vertical mounting profile optimized for space-constrained designs
Fixed Inductors Applications
- High current power supply circuits
- GaN-based power systems
- Industrial electronic equipment
Fixed Inductors Procurement Notes
Verify the specific ordering suffix against official CODACA documentation to confirm electrical tolerances and compliance standards. Ensure that the selected variant matches the required industrial or automotive qualification levels as defined by the manufacturer's product specifications.
Fixed Inductors Selection Notes
Select this component when designing circuits requiring high current handling capabilities alongside low core losses. The vertical form factor and shielded design make it appropriate for applications where electromagnetic interference suppression and thermal management are critical priorities.
Fixed Inductors Part Context
This part belongs to the CPRA series of fixed inductors manufactured by Shenzhen Codaca Electronic Co., Ltd. The series focuses on compact high-current solutions, often utilized in modern power electronics where efficiency and size reduction are essential requirements for system integration.
Fixed Inductors Replacement Considerations
Consult official substitution lists for compatible alternatives within the same series. Verify pin compatibility and electrical parameters before replacing components to ensure circuit integrity and performance consistency.
