CPRX2315LA-240MC

Fixed Inductors Overview

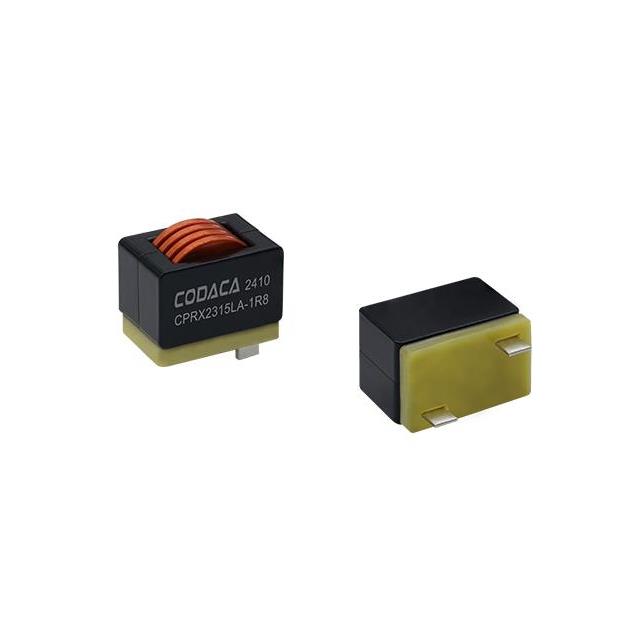

The CPRX2315LA-240MC is a fixed through-hole power inductor from the CODACA CPD2315 series, designed for digital amplifier applications. It features a vertical package with two PC pins and operates within a temperature range of -55°C to 155°C. The component is characterized by low DC resistance (DCR), low core loss, and soft saturation behavior. Electrical testing is conducted at a frequency of 100 kHz. This high-current inductor supports wide frequency ranges and offers high efficiency suitable for demanding power electronics environments.

Fixed Inductors Feature Summary

• Soft saturation characteristic for stable performance under load
• Low DC resistance and low core loss for high efficiency
• Through-hole mounting with vertical two-pin configuration

Fixed Inductors Applications

• Digital amplifier circuits
• High current power supply designs
• DC-DC converter inductors

Fixed Inductors Procurement Notes

Verify the specific part number suffix against official CODACA documentation to ensure correct tolerance and packaging specifications. Confirm that the vertical two-pin package matches the target PCB footprint requirements. Cross-reference the operating temperature range and test frequency parameters with system design constraints before finalizing procurement orders.

Fixed Inductors Selection Notes

Select this component when soft saturation behavior is required to maintain inductance stability during high current transients. The through-hole format provides mechanical robustness for industrial or automotive environments. Ensure the application demands low impedance characteristics and can accommodate the physical dimensions of the 2315 package style.

Fixed Inductors Part Context

This model belongs to the CPD2315 series of high-current power inductors manufactured by Shenzhen Codaca Electronic Co., Ltd. The series specializes in magnetic components for power electronics, emphasizing material R&D to achieve high current capabilities and ultra-low DC resistance across various digital and analog power conversion applications.

Fixed Inductors Replacement Considerations

Consult official CODACA documentation for confirmed substitute part numbers within the same series or family. Verify that any replacement maintains identical mounting type, pin configuration, and thermal ratings.
