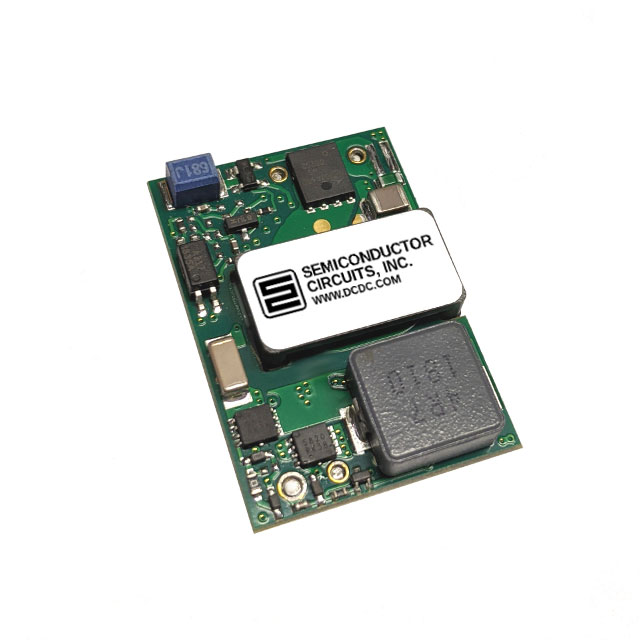

CPT1U48P

CPT1U48P is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Semiconductor Circuits, Inc.. Its product description is DC DC CONVERTER 48V 60W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for CPT1U48P

• Description：DC DC CONVERTER 48V 60W
• Series：CPT (60W)
• Mfr：Semiconductor Circuits, Inc.
• Package：Tray
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：48V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：1.25A
• Power (Watts)：60 W
• Voltage - Isolation：2.25 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output, Remote On/Off, Remote Sense
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：90%
• Mounting Type：Through Hole
• Package / Case：Sixteenth Brick
• Size / Dimension：1.30" L x 0.90" W x 0.37" H (33.0mm x 22.9mm x 9.5mm)
• Supplier Device Package：Sixteenth Brick
• Control Features：Enable, Active High
• Approval Agency：CSA, TUV, UL
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for CPT1U48P
