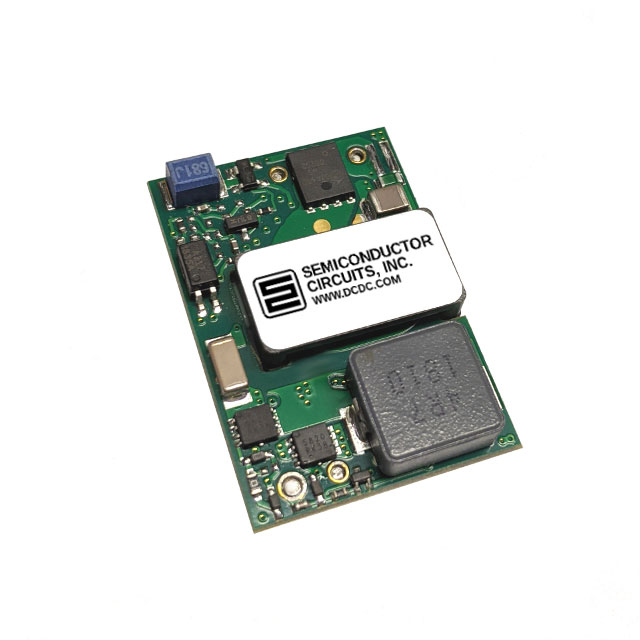

CPT2U48N

CPT2U48N is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Semiconductor Circuits, Inc.. Its product description is DC-DC CONVERTER 48V 80W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for CPT2U48N

• Description：DC-DC CONVERTER 48V 80W
• Series：CPT (80W)
• Mfr：Semiconductor Circuits, Inc.
• Package：Tray
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：48V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：1.66A
• Power (Watts)：80 W
• Voltage - Isolation：2.25 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output, Remote On/Off, Remote Sense
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：91%
• Mounting Type：Through Hole
• Package / Case：8-DIP Module, 1/16 Brick
• Size / Dimension：1.30" L x 0.90" W x 0.37" H (33.0mm x 22.9mm x 9.5mm)
• Supplier Device Package：Sixteenth Brick
• Control Features：Enable, Active Low
• Approval Agency：CSA, TUV, UL
• Standard Number：62368-1
• Grade：-
• Qualification：-
