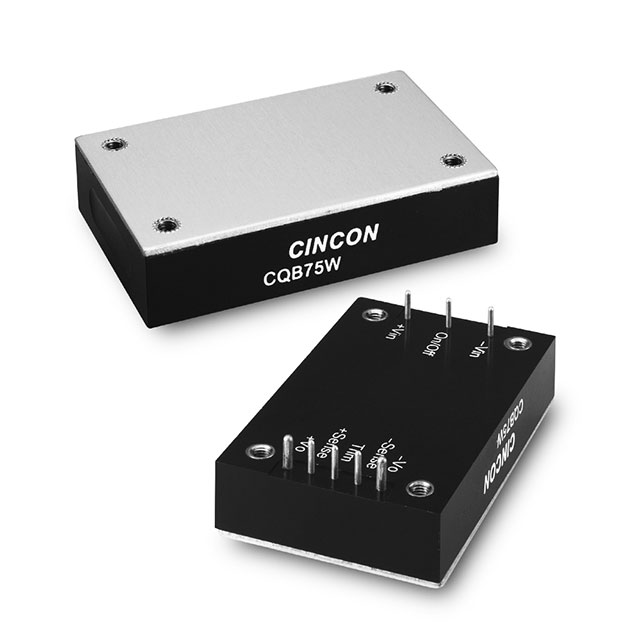

CQB75W-24S15N

CQB75W-24S15N is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Cincon Electronics Co. LTD. Its product description is DC DC CONVERTER 15V 75W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for CQB75W-24S15N

• Description：DC DC CONVERTER 15V 75W
• Series：CQB75W (75W)
• Mfr：Cincon Electronics Co. LTD
• Package：Tray
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：9V
• Voltage - Input (Max)：36V
• Voltage - Output 1：15V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：5A
• Power (Watts)：75 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OTP, OVP, SCP, UVLO
• Operating Temperature：-40°C ~ 100°C (With Derating)
• Efficiency：86%
• Mounting Type：Through Hole
• Package / Case：Module
• Size / Dimension：2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm)
• Supplier Device Package：-
• Control Features：Enable, Active Low
• Approval Agency：CE, cURus
• Standard Number：60950-1
• Grade：-
• Qualification：-
