CR-153.600MBE-T

Oscillators Overview

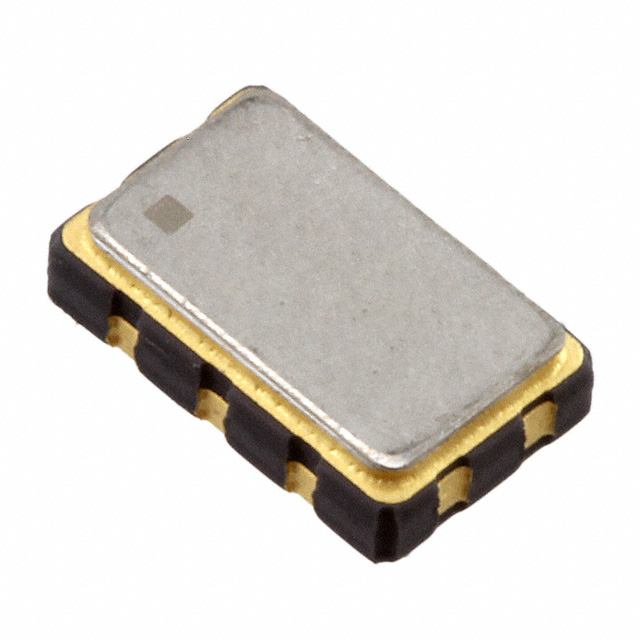

The CR-153.600MBE-T is a Voltage-Controlled Crystal Oscillator (VCXO) manufactured by TXC Corporation, operating at a nominal frequency of 153.6 MHz. It utilizes CMOS output format and functions within a supply voltage range of 3.3V. The component maintains a frequency stability of 50 ppm across an industrial temperature range from -40°C to +85°C. Designed for surface-mount technology, it features SMD/SMT termination and includes enable/disable control functionality.

Oscillators Feature Summary

• Voltage-controlled crystal oscillator architecture with CMOS output
• Integrated enable and disable control capability
• Industrial temperature operation range
• Surface-mount device construction

Oscillators Applications

• Telecommunications systems requiring precise clock generation
• Data communication interfaces needing stable frequency sources
• Electronic equipment utilizing VCXO-based phase locking

Oscillators Procurement Notes

Verify the specific datasheet version for the CR-153.600MBE-T to confirm detailed electrical characteristics and pin configuration. Ensure that the application circuit supports the required 3.3V supply and CMOS logic levels. Confirm that the design accommodates the specified 50 ppm stability and the -40°C to +85°C operating temperature range. Validate that the surface-mount footprint matches the physical dimensions provided in the official documentation.

Oscillators Selection Notes

Select this component when a fixed-frequency VCXO at 153.6 MHz is required with CMOS outputs. It is suitable for designs needing enable/disable control and industrial temperature resilience. Compare against CJ-153.600MBE-T if LVPECL outputs are preferred instead of CMOS. Ensure the system design accounts for the specific load capacitance and tuning voltage requirements defined in the manufacturer's specifications.

Oscillators Part Context

This part belongs to the TXC Corporation VCXO oscillator series, designed for applications requiring frequency agility and stability. It complements other models like BR-153.600MBE-T and CJ-153.600MBE-T, offering distinct output formats and control features within the same frequency band. The series targets high-reliability electronic systems.

Oscillators Replacement Considerations

The CJ-153.600MBE-T serves as a related alternative within the same frequency family, differing primarily in output format (LVPECL vs. CMOS). Verify compatibility regarding power consumption, pinout, and control signal requirements before substitution.
