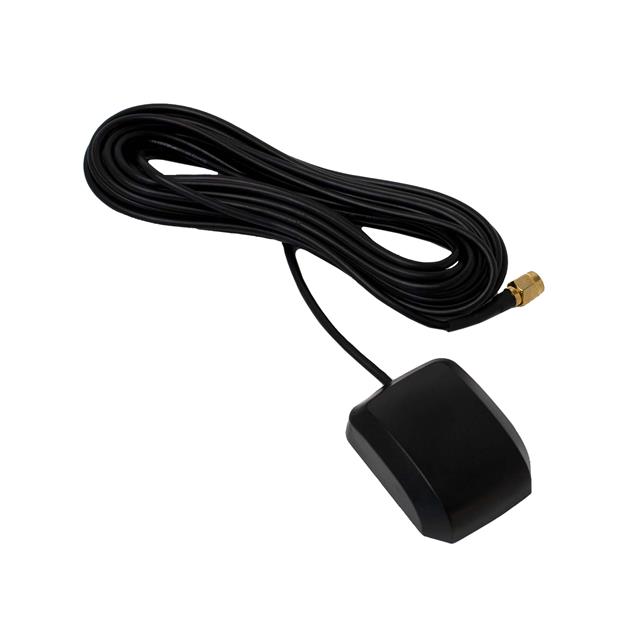

CRJKS0009-LNA-LM5X3000SMA is listed in the Antennas RF range at ChipApex. The manufacturer field lists Airgain. Its product description is GNSS ANTENNA. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for CRJKS0009-LNA-LM5X3000SMA
- Description：GNSS ANTENNA
- Series：-
- Mfr：Airgain
- Package：Bag
- RF Family/Standard：-
- Frequency Group：UHF (1GHz ~ 2GHz)
- Frequency (Center/Band)：1.5845GHz
- Frequency Range：1.559GHz ~ 1.61GHz
- Antenna Type：Ceramic Patch
- Number of Bands：1
- VSWR：-
- Return Loss：-
- Gain：23dB
- Features：LNA
- Termination：SMA
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Magnetic
- Height (Max)：0.535" (13.60mm)
- Applications：GPS
- Power - Max：-
Antennas RF datasheet and documents for CRJKS0009-LNA-LM5X3000SMA
Antennas RF Overview
The Airgain CRJKS0009-LNA-LM5X3000SMA is a ceramic patch antenna designed for GPS applications. It operates within the frequency range of 1.559GHz to 1.61GHz, with a center frequency of 1.5845GHz. The unit features an integrated Low Noise Amplifier (LNA) and utilizes an SMA connector. It has a maximum height of 0.535 inches (13.60mm) and employs a magnetic mounting type.
Antennas RF Feature Summary
- Integrated Low Noise Amplifier for signal enhancement
- Ceramic patch construction optimized for GPS reception
- Magnetic mounting configuration for flexible installation
Antennas RF Applications
- GPS navigation systems
- GNSS tracking devices
- Mobile positioning units
Antennas RF Procurement Notes
Verify the specific ordering suffix to ensure the correct connector type and LNA integration match system requirements. Confirm that the magnetic mounting base is suitable for the target surface material. Check active status and availability through authorized NimbeLink or Airgain distributors before finalizing procurement plans.
Antennas RF Selection Notes
Select this component when a low-profile external antenna with built-in amplification is required for GPS bands. The magnetic mount facilitates temporary or semi-permanent placement on metallic surfaces. Ensure the SMA interface compatibility with the receiving equipment's RF port.
Antennas RF Part Context
This model belongs to the CRJKS0009 series of ceramic patch antennas from Airgain. The series is engineered specifically for global positioning system applications, offering reliable performance in mobile and stationary environments.
Antennas RF Replacement Considerations
Direct substitutes include other CRJKS0009 variants with different connectors or LNA configurations. Verify frequency range and mounting style compatibility when considering alternative part numbers.
