CS00445-26M

Overview

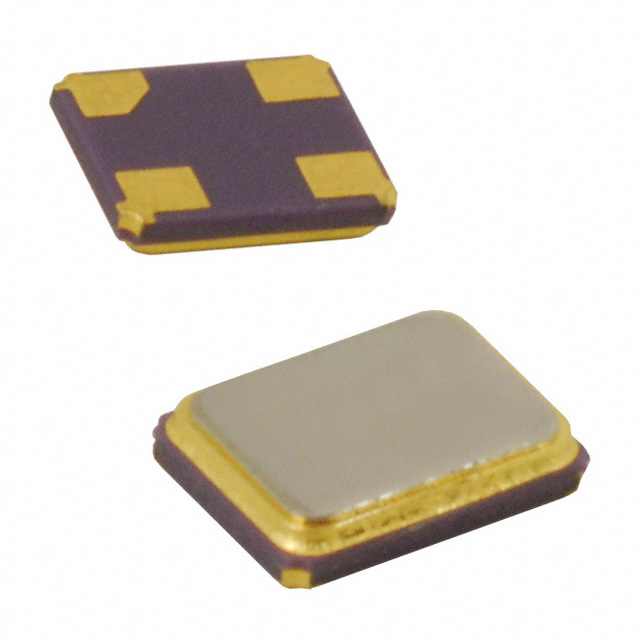

The CS00445-26M is a surface-mount MHz crystal manufactured by NDK (NIHON DEMPA KOGYO CO., LTD). It operates at a fundamental frequency of 26.0000 MHz with a load capacitance of 10 pF. The component exhibits a frequency tolerance and stability of ±10 ppm, alongside an equivalent series resistance (ESR) of 100 Ohms. Designed for robust performance, it supports an operating temperature range from -40°C to +85°C. The device utilizes a compact 4-SMD, No Lead package with dimensions of 1.60mm x 1.20mm and a maximum height of 0.35mm. It is RoHS compliant and classified under ECCN EAR99.

Feature Summary

• Integrates high-frequency stability with a compact surface-mount footprint for space-constrained designs
• Ensures reliable oscillation through low equivalent series resistance in a lead-free SMD configuration
• Supports wide industrial temperature ranges for consistent performance in diverse environmental conditions

Applications

• Mobile communication devices requiring precise timing signals
• Fixed radio communication equipment needing stable frequency references
• Office automation systems utilizing quartz crystal components
• Automotive electronics applications demanding high-reliability oscillators

Procurement Notes

Verify the specific part number CS00445-26M against official NDK documentation to confirm electrical parameters such as 10pF load capacitance and ±10ppm stability. Ensure compatibility with surface-mount assembly processes and check for RoHS compliance status relevant to your region. Confirm that the 4-SMD package dimensions align with your PCB layout requirements before finalizing procurement decisions.

Selection Notes

Select this component when a 26 MHz fundamental mode crystal is required with tight ±10 ppm stability specifications. The 100 Ohm ESR and 10pF load capacitance must match the oscillator circuit design constraints. Consider the -40°C to +85°C operating range for industrial or automotive environments. The small 1.60mm x 1.20mm package size is suitable for dense surface-mount layouts where space is limited compared to larger crystal packages.

Part Context

This component belongs to the broader category of quartz crystal devices provided by NDK, which has operated since 1948. NDK focuses on high-precision, high-reliability crystal components essential for ubiquitous networked societies. The CS00445-26M represents the company's capability to deliver accurate oscillation sources for mobile communications, fixed radio, office automation, audiovisual, and automotive electronics equipment.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material. Verify cross-compatibility with other 26 MHz SMD crystals based on matching ESR, load capacitance, and dimensional constraints using official manufacturer substitution guides.
