CS06410-32M

Overview

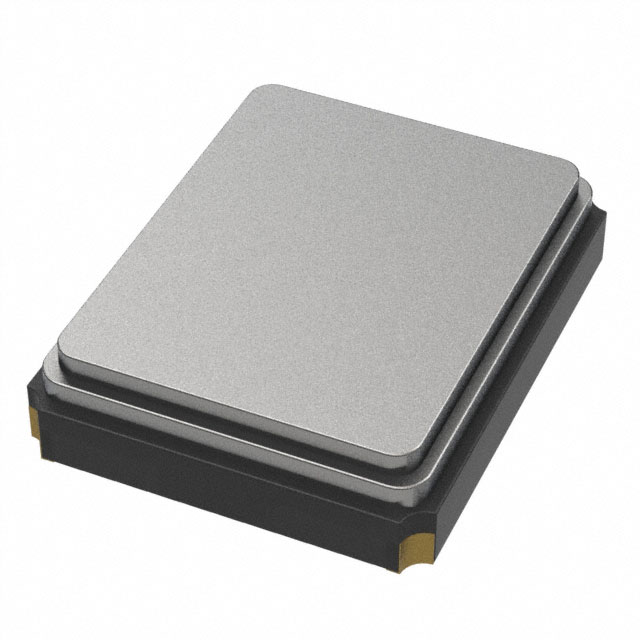

The NDK CS06410-32M is a surface-mount crystal resonator designed for precision timing applications. It operates at a fundamental frequency of 32 MHz with a load capacitance of 8 pF and an equivalent series resistance (ESR) of 60 Ohms. The component features a frequency tolerance of ±10 ppm and functions within an operating temperature range of -40°C to +85°C. Packaged in a compact 4-SMD, no-lead form factor with a maximum seated height of 0.50 mm, this device provides stable oscillation suitable for integration into space-constrained electronic circuits requiring reliable clock signals.

Feature Summary

• Fundamental operating mode ensures precise frequency generation
• Surface-mount package design facilitates automated assembly
• Wide operating temperature range supports diverse environmental conditions

Applications

• Microcontroller clock sources
• Communication module timing
• Consumer electronics control circuits

Procurement Notes

Verify the specific datasheet version provided by the manufacturer or authorized distributor to confirm exact mechanical dimensions and electrical characteristics. Ensure that the load capacitance requirements of the target circuit match the component's specified 8 pF value. Confirm that the operating temperature range aligns with the intended application environment before finalizing procurement decisions.

Selection Notes

Select this component when a 32 MHz fundamental frequency is required with moderate stability. Consider the 60 Ohm ESR and 8 pF load capacitance compatibility with the oscillator circuit design. Evaluate the 4-SMD package size against available board space constraints. Verify that the ±10 ppm tolerance meets the system's timing accuracy requirements under specified temperature conditions.

Part Context

This part belongs to NDK's line of quartz crystal resonators, manufactured using proprietary technology for high-quality uniformity. NDK specializes in producing various frequency control components, including crystals, oscillators, and filters, serving industries such as automotive, IoT, and mobile communications. The CS06410 series represents their standard surface-mount offerings.

Replacement Considerations

Direct substitutes must match the 32 MHz frequency, 8 pF load capacitance, 60 Ohm ESR, and 4-SMD package dimensions. Cross-reference with other manufacturers' 32 MHz SMD crystals ensuring identical electrical parameters and thermal specifications are met.
