CS06465-32M

Overview

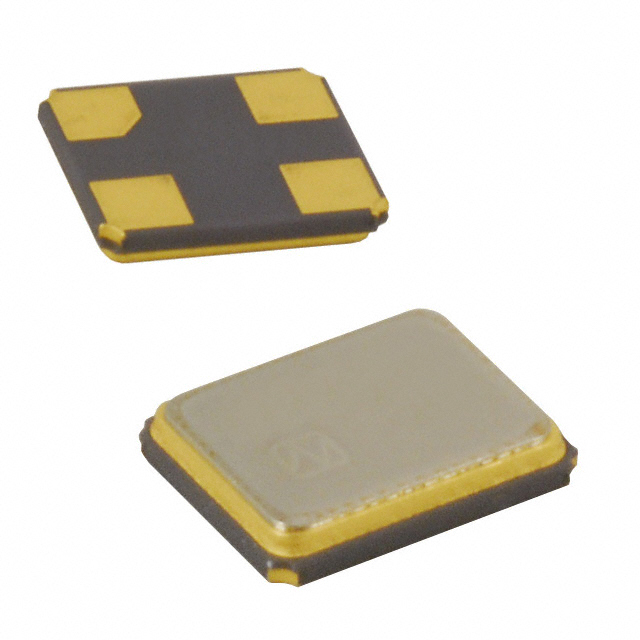

The NDK CS06465-32M is a surface-mount quartz crystal resonator operating at a fundamental frequency of 32 MHz. It features a load capacitance of 10 pF and a frequency tolerance of ±10 ppm. The component exhibits an equivalent series resistance (ESR) of 100 Ω and operates within a temperature range of -20°C to +70°C. It utilizes a 4-SMD, no-lead package with dimensions of 3.20 mm x 2.50 mm and a maximum height of 0.70 mm.

Feature Summary

• Fundamental mode operation for stable clock generation
• Surface-mount design optimized for automated assembly processes
• Industrial-grade thermal stability across specified temperature ranges

Applications

• Microcontroller unit clock sources
• Communication interface timing circuits
• Embedded system oscillator modules

Procurement Notes

Verify the specific suffix requirements against the manufacturer's datasheet to ensure compatibility with target circuit parameters. Confirm that the selected variant meets the required frequency tolerance and load capacitance specifications for the intended application environment. Cross-reference official documentation to validate package dimensions and mounting recommendations before finalizing procurement orders.

Selection Notes

Select this component when a 32 MHz fundamental frequency is required for digital logic timing. Ensure the circuit design accounts for the 10 pF load capacitance and 100 Ω ESR characteristics. Verify that the operating temperature range of -20°C to +70°C aligns with the environmental conditions of the end product. Consider the 4-SMD footprint size for PCB layout constraints.

Part Context

This part belongs to the NDK crystal resonator portfolio, designed for general-purpose timing applications in consumer and industrial electronics. It serves as a passive frequency-determining element in oscillator circuits, providing precise clock signals for microprocessors and communication devices requiring stable frequency references.

Replacement Considerations

Direct substitutes include other 32 MHz SMD crystals with matching 10 pF load capacitance and similar dimensional footprints. Verify electrical parameters such as ESR and frequency stability before substitution to maintain circuit performance.
