CS16-F1015CQ08-32.000M-TR

Crystals Overview

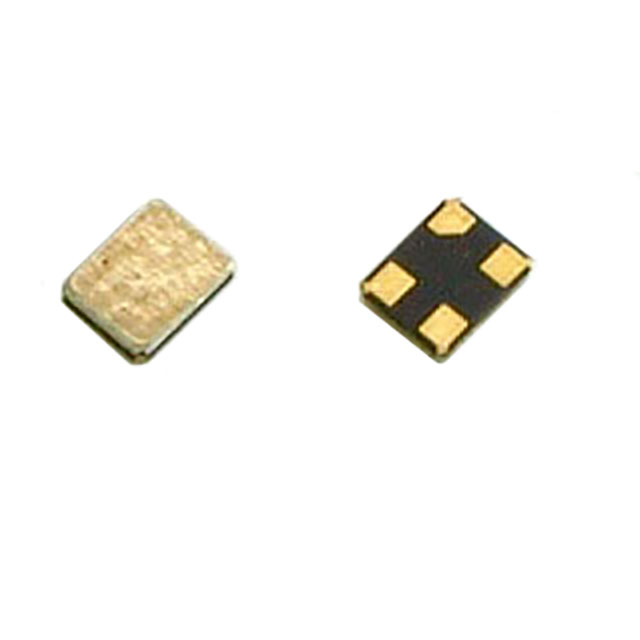

The CS16-F1015CQ08-32.000M-TR is a surface-mount crystal oscillator manufactured by Transko Electronics, Inc. It operates at a fundamental frequency of 32 MHz with a tolerance of ±10ppm. The component features an 8pF load capacitance and 150 Ohms impedance. It utilizes a 4-SMD, No Lead package with a maximum seated height of 0.016 inches (0.40mm).

Crystals Feature Summary

• Fundamental operating mode for stable frequency generation.
• Surface mount design for automated PCB assembly.
• Compact 4-SMD no lead package configuration.

Crystals Applications

• General purpose timing circuits requiring 32 MHz reference.
• Embedded systems utilizing surface mount technology.
• Consumer electronics requiring compact crystal solutions.

Crystals Procurement Notes

Verify the specific datasheet version to confirm exact electrical parameters and mechanical dimensions before integration. Ensure compatibility with reflow soldering profiles specified in the official documentation. Confirm that the 4-SMD no lead package aligns with your PCB footprint requirements. Cross-reference the manufacturer part number to avoid confusion with similar series components.

Crystals Selection Notes

Select this component when a 32 MHz fundamental crystal is required in a low-profile SMD form factor. The ±10ppm tolerance suits applications with moderate frequency stability needs. Consider the 8pF load capacitance requirement for circuit design matching. Evaluate the 150 Ohms impedance against driver strength capabilities.

Crystals Part Context

This part belongs to the CS16 series of crystals from Transko Electronics. The series offers various frequencies and packages. The CS16-F1015CQ08 variant specifically denotes the 32 MHz frequency and 8pF load capacitance. The -TR suffix typically indicates tape and reel packaging for high-volume manufacturing.

Crystals Replacement Considerations

No public substitute part numbers are documented for this specific model. Verify direct pinout and parameter compatibility if considering alternative manufacturers. Consult official Transko documentation for any discontinued or updated series replacements.
