CS1610-A-32.768K

Crystals Overview

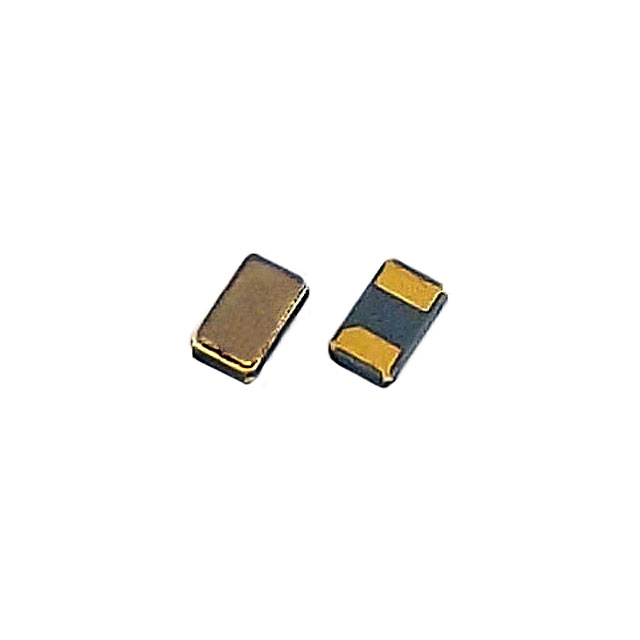

The CS1610-A-32.768K is a surface-mount tuning fork crystal manufactured by Transko Electronics, Inc., designed for precision timing applications. It operates at a nominal frequency of 32.768 kHz with a frequency tolerance of ±20 ppm. The component features a load capacitance of 12.5 pF and an equivalent series resistance (ESR) of 90 kOhms. Packaged in a 2-SMD, no-lead form factor, this device belongs to the CS1610 series and is supplied in tape and reel packaging for automated assembly processes.

Crystals Feature Summary

• Tuning fork crystal design optimized for low power consumption
• Surface mount package suitable for automated PCB assembly
• Precision frequency stability for real-time clock synchronization

Crystals Applications

• Real-time clock (RTC) circuits
• Wristwatches and wearable devices
• Portable electronic equipment requiring precise timekeeping

Crystals Procurement Notes

Verify the manufacturer part number against official Transko Electronics documentation to ensure authenticity. Confirm that the received components match the specified 32.768 kHz frequency and 12.5 pF load capacitance parameters. Check for physical damage to the SMD package before integration into production lines.

Crystals Selection Notes

Select this component when a compact surface-mount solution is required for low-frequency timing references. The 90 kOhm ESR and 12.5 pF load capacitance must align with the oscillator circuit design specifications. Ensure the ±20 ppm tolerance meets the system's accuracy requirements for long-term drift performance.

Crystals Part Context

This part belongs to the CS1610 series of tuning fork crystals from Transko Electronics. These components are engineered specifically for applications demanding high stability in small form factors. The series supports various frequencies, with 32.768 kHz being standard for binary-based time division counters.

Crystals Replacement Considerations

Consult official Transko Electronics substitution guides for compatible alternatives. Verify that any substitute maintains identical electrical parameters including frequency, load capacitance, and ESR values.
