CS21-F1010GM08-32.000M-TR

Crystals Overview

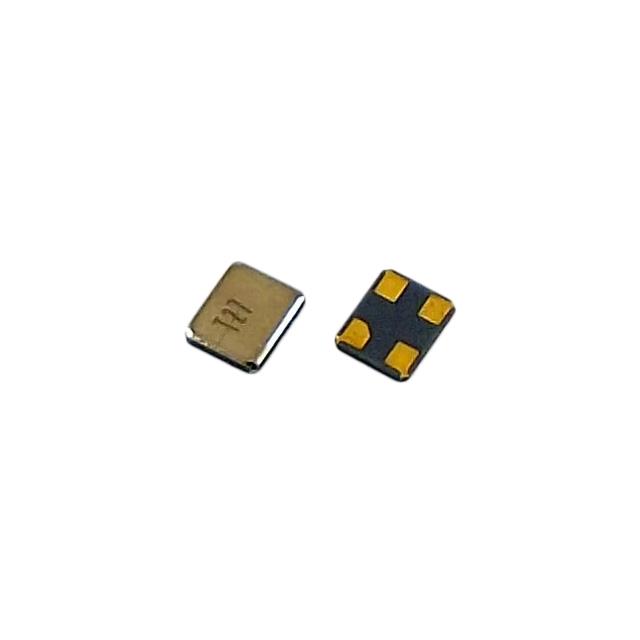

The CS21-F1010GM08-32.000M-TR is an ultra-miniature ceramic surface-mount crystal oscillator manufactured by Transko Electronics, Inc. It operates at a fundamental frequency of 32 MHz with a load capacitance of 10 pF. The component features a compact 4-SMD package measuring 2.0 x 1.6 x 0.46 mm. Frequency stability and tolerance are both specified at ±10 ppm. The device is RoHS compliant and lead-free, packaged in tape and reel format for automated assembly.

Crystals Feature Summary

• Ultra-miniature ceramic construction for space-constrained designs
• Surface-mount 4-pad configuration for automated placement
• High frequency stability and tight tolerance specifications

Crystals Applications

• Clock generation for microcontrollers
• Timing reference for communication interfaces
• Embedded system oscillators

Crystals Procurement Notes

Verify the complete part number including suffixes to ensure correct frequency and tolerance specifications. Confirm RoHS compliance status matches project requirements. Check that the tape and reel packaging aligns with available pick-and-place equipment capabilities. Validate supplier authorization to guarantee component authenticity.

Crystals Selection Notes

Select this component when a 32 MHz timing source is required in a minimal footprint. Ensure the circuit design supports a 10 pF load capacitance. Verify that the ±10 ppm stability meets the system's clock accuracy needs. Consider thermal management requirements associated with SMD ceramic packages.

Crystals Part Context

This part belongs to the CS21 series of ultra-miniature ceramic crystals from Transko Electronics. The series offers various frequencies and tolerances within a standardized 2.0 x 1.6 mm package. It serves as a passive timing element distinct from active oscillator modules.

Crystals Replacement Considerations

Direct substitutes must match the 32 MHz frequency, 10 pF load capacitance, and 4-SMD 2.0x1.6mm package dimensions. Verify equivalent stability and tolerance ratings before substitution.
